QOB330GFI | Mini circuit breaker, QO, 30A, 3 pole, 208Y/120VAC, 10kA, 6mA grd fault A, pigtail, bolt on mount | Square D by Schneider Electric

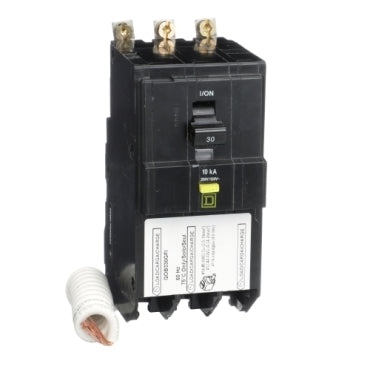

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to QOB330GFI

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D QOB330GFI Documents

Datasheet More Info

Overview

Details for QOB330GFI

Mini circuit breaker, QO, 30A, 3 pole, 208Y/120VAC, 10kA, 6mA grd fault A, pigtail, bolt on mount

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 30A at 208Y/120VAC. This unit provides 10kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555

Specifications

Product: Miniature circuit-breaker
Range: QO
Current Rating: 30 A
Voltage Rating: 208Y/120 V AC
Mounting Type: Bolt-on
Number of Poles: 3P
Circuit Breaker Type: Ground fault protecting class A 6 mA
Ratings: Not rated
Electrical Connection: Box lugs
Interrupt Rating: 10 kA 208Y/120 V AC 50/60 Hz
Number of Panel Spaces: 3
Wire Size: AWG 12...AWG 4 aluminium;AWG 14...AWG 6 copper
Tightening Torque: 40.71 lbf.in (4.6 N.m) 0.00…0.02 in² (2.5…10 mm²) (AWG 16...AWG 14);40.71 lbf.in (4.6 N.m) 0.01…0.03 in² (4…20 mm²) (AWG 12...AWG 4)
Height: 4.13 in (105 mm)
Width: 2.24 in (57 mm)
Depth: 2.91 in (74 mm)
Net Weight: 1.32 lb(US) (0.600 kg)
Certifications: UL Listed;CSA
Ambient Rating: 104 °F (40 °C)
Category: 00103-QO 2 POLE GFI CB 40-60A
Discount Schedule: DE2A
GTIN: 785901989226
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.60 in (6.604 cm)
Package 1 Width: 3.30 in (8.382 cm)
Package 1 Length: 6.30 in (16.002 cm)
Package 1 Weight: 21.16 oz (600.0 g)
Unit Type of Package 2: CAR
Number of Units in Package 2: 15
Package 2 Height: 3.80 in (9.652 cm)
Package 2 Width: 13.80 in (35.052 cm)
Package 2 Length: 21.00 in (53.34 cm)
Package 2 Weight: 21.45 lb(US) (9.729 kg)
Warranty: 18 months
