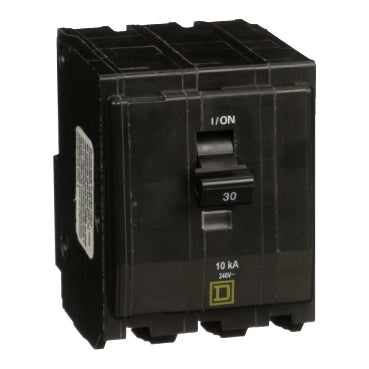

QO3305237 | Mini circuit breaker, QO, 30A, 3 pole, 120/240VAC, 10kA, plug in mount, ring terminals | Square D by Schneider Electric

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to QO3305237

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D QO3305237 Documents

Datasheet More Info

Overview

Details for QO3305237

Mini circuit breaker, QO, 30A, 3 pole, 120/240VAC, 10kA, plug in mount, ring terminals

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 30A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes ring terminals. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555

Specifications

Product: Miniature circuit-breaker
Range: QO
Current Rating: 30 A
Voltage Rating: 120/240 V AC;240 V AC;120 V AC;48 V DC
Mounting Type: Plug-in
Number of Poles: 3P
Circuit Breaker Type: Standard
Ratings: HACR rated
Electrical Connection: Ring tongue
Interrupt Rating: 10 kA 120/240 V AC 50/60 Hz;10 kA 240 V AC 50/60 Hz;10 kA 120 V AC 50/60 Hz;5 kA 48 V DC
Number of Panel Spaces: 3
Wire Size: AWG 14...AWG 8 copper
Tightening Torque: 44.25 lbf.in (5 N.m) 0.02…0.04 in² (10…25 mm²) (AWG 8...AWG 2)
Height: 2.99 in (76 mm)
Width: 2.24 in (57 mm)
Depth: 2.91 in (74 mm)
Net Weight: 0.83 lb(US) (0.376 kg)
Certifications: UL Listed;CSA
Ambient Rating: 104 °F (40 °C)
Category: 00004-QO;QOT 10-30A 1P;10-60A 2P
Discount Schedule: DE2A
GTIN: 785901636793
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.40 in (8.636 cm)
Package 1 Width: 2.30 in (5.842 cm)
Package 1 Length: 3.80 in (9.652 cm)
Package 1 Weight: 13.28 oz (376.482 g)
Warranty: 18 months
