QO2175 | Mini circuit breaker, QO, 175A, 2 pole, 120/240VAC, 10kA, plug in mount | Square D by Schneider Electric

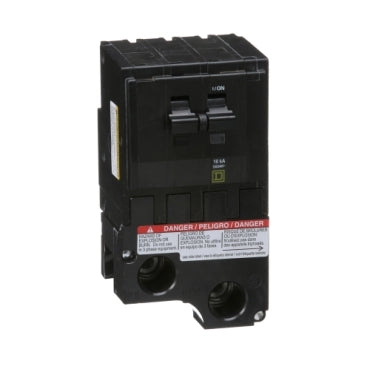

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QO2175
Overview
Details for QO2175
Mini circuit breaker, QO, 175A, 2 pole, 120/240VAC, 10kA, plug in mount
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 175A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. A full line of factory installed accessories, such as shunt trips, auxiliary switches and alarm switches are available. The box lugs will accept one 1 AWG to 300 kcmil copper or aluminum wire. This circuit breaker has a height of 3.50 inches, a width of 1.50 inches and a depth of 2.91 inches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.Specifications
- Product
- Miniature circuit-breaker
- Range
- QO
- Current Rating
- 175 A
- Voltage Rating
- 120/240 V AC;120 V AC
- Mounting Type
- Plug-in
- Number of Poles
- 2P
- Circuit Breaker Type
- Standard
- Ratings
- HACR rated
- Electrical Connection
- Box lugs
- Interrupt Rating
- 10 kA 120/240 V AC 50/60 Hz;10 kA 120 V AC 50/60 Hz
- Number of Panel Spaces
- 4
- Wire Size
- AWG 1...300 kcmil copper or aluminium
- Tightening Torque
- 40.71 lbf.in (4.6 N.m)
- Height
- 3.50 in (89 mm)
- Width
- 1.50 in (38 mm)
- Depth
- 2.91 in (74 mm)
- Net Weight
- 2.55 lb(US) (1.157 kg)
- Certifications
- UL Listed;CSA
- Ambient Rating
- 104 °F (40 °C)
- Category
- 00082-QO BREAKERS 150-200A
- Discount Schedule
- DE2A
- GTIN
- 785901430520
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.80 in (12.192 cm)
- Package 1 Width
- 6.90 in (17.526 cm)
- Package 1 Length
- 7.60 in (19.304 cm)
- Package 1 Weight
- 2.55 lb(US) (1.157 kg)
- Warranty
- 18 months
