QO130L200PGRB | Load center, QO, 1 phase, 30 spaces, 30 circuits, 200A convertible main lugs, PoN, NEMA3R, gnd bar, UL | Square D by Schneider Electric

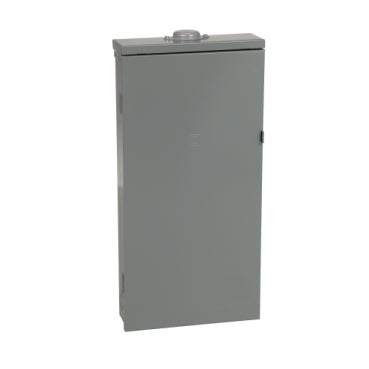

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to QO130L200PGRB

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D QO130L200PGRB Documents

Datasheet More Info

Overview

Details for QO130L200PGRB

Load center, QO, 1 phase, 30 spaces, 30 circuits, 200A convertible main lugs, PoN, NEMA3R, gnd bar, UL

QO® Circuit Breaker Load Centers, QO130L200PGRB, from Square D® are Underwriters Laboratories (UL) Listed and CSA rated panelboards. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 30 spaces and 30 circuits. This system provides 200A convertible main lugs in a NEMA 3R enclosure. It also includes plug on neutral, ground bar, and is UL rated.

Specifications

Marketing Trade Name: QO
Product Type: Load Center
Enclosure Type: Weatherproof enclosure
Cover Type: Surface cover
Tightening Torque: Main lugs 250 lb.in;AWG 4...250 kcmil;aluminium/copper;Main lugs 250 lb.in;AWG 4...300 kcmil;aluminium/copper
Load Center Type: Main lugs
Rated Current: 200 A
Number of Spaces: 30
Max Short Circuit Current Rating: 65 kA
Maximum Number of Single Pole Circuits: 40
Maximum Number of Tandem Breakers: 10
Number of Phases: 1 phase
Wire Size: AWG 6...250 kcmil aluminium/copper
Ground Bar: Grounding bar included (not installed)
Electrical Connection: Lugs
Wiring Configuration: 3-wire
Busbar Material: Tin plated copper busbar
Enclosure Material: Welded galvannealed steel
Surface Finish: Baked enamel Gray
Box Number: 6R
Height: 29.84 in (758 mm)
Width: 14.76 in (375 mm)
Enclosure Rating: NEMA 3R outdoor
Ambient Air Temperature for Operation: 23 °F (-5 °C);104 °F (40 °C)
Product Certifications: UL Listed
Category: 10002-QO PON 1PH LC;12-60 CKT;N3R
Discount Schedule: DE3A
GTIN: 785901103912
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.30 in (13.462 cm)
Package 1 Width: 15.60 in (39.624 cm)
Package 1 Length: 32.00 in (81.28 cm)
Package 1 Weight: 32.19 lb(US) (14.6 kg)
Unit Type of Package 2: PAL
Number of Units in Package 2: 24
Package 2 Height: 43.00 in (109.22 cm)
Package 2 Width: 42.00 in (106.68 cm)
Package 2 Length: 48.00 in (121.92 cm)
Package 2 Weight: 800.72 lb(US) (363.2 kg)
