QO120HM | Mini circuit breaker, QO, 20A, 1 pole, 120VAC, 10kA, high magnetic, plug in mount | Square D by Schneider Electric

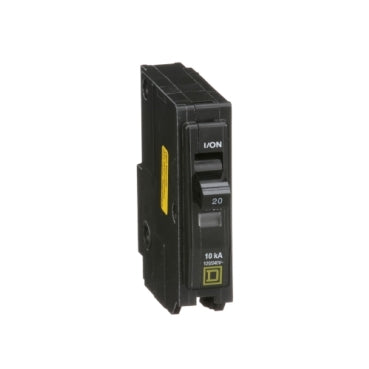

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QO120HM
Overview
Details for QO120HM
Mini circuit breaker, QO, 20A, 1 pole, 120VAC, 10kA, high magnetic, plug in mount
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 20A at 120VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product has a high magnetic feature. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555Specifications
- Product
- Miniature circuit-breaker
- Range
- QO
- Current Rating
- 20 A
- Voltage Rating
- 120 V AC
- Mounting Type
- Plug-in
- Number of Poles
- 1P
- Circuit Breaker Type
- High magnetic
- Ratings
- HACR and Switching Duty rated
- Electrical Connection
- Pressure plate
- Interrupt Rating
- 10 kA 120 V AC 50/60 Hz
- Number of Panel Spaces
- 1
- Wire Size
- AWG 14...AWG 8 copper or aluminium
- Tightening Torque
- 40.71 lbf.in (4.6 N.m)
- Height
- 2.99 in (76 mm)
- Width
- 0.75 in (19 mm)
- Depth
- 2.91 in (74 mm)
- Net Weight
- 0.27 lb(US) (0.122 kg)
- Certifications
- UL Listed;CSA
- Ambient Rating
- 104 °F (40 °C)
- Category
- 00004-QO;QOT 10-30A 1P;10-60A 2P
- Discount Schedule
- DE2A
- GTIN
- 785901400110
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 0.70 in (1.778 cm)
- Package 1 Width
- 2.70 in (6.858 cm)
- Package 1 Length
- 3.00 in (7.62 cm)
- Package 1 Weight
- 4.30 oz (122.0 g)
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 10
- Package 2 Height
- 3.30 in (8.382 cm)
- Package 2 Width
- 2.70 in (6.858 cm)
- Package 2 Length
- 7.70 in (19.558 cm)
- Package 2 Weight
- 2.76 lb(US) (1.252 kg)
- Unit Type of Package 3
- CAR
- Number of Units in Package 3
- 100
- Package 3 Height
- 8.30 in (21.082 cm)
- Package 3 Width
- 6.90 in (17.526 cm)
- Package 3 Length
- 17.20 in (43.688 cm)
- Package 3 Weight
- 28.26 lb(US) (12.819 kg)
- Warranty
- 18 months
