NQ442L2 | Panelboard interior, NQ, main lugs, 225A, Al bus, 42 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC | Square D

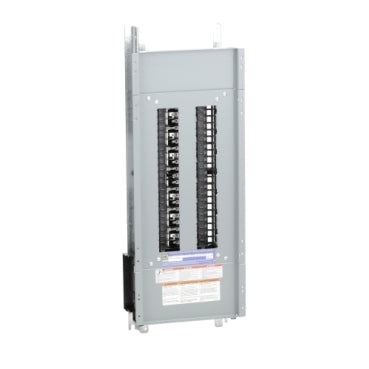

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to NQ442L2
Overview Details for NQ442L2
Panelboard interior, NQ, main lugs, 225A, Al bus, 42 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC
This Schneider Electric OsiSense electronic pressure switch has a 4 digit 7-segment display, hysteresis switching mode. It has a pressure rating of -1 bar. It has a supply voltage of 24Vdc and 2 x solid state outputs (pnp). 0High accuracy for more stable control on your critical processes. Simple reading of current value and threshold with clear LED display. 10 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits.Specifications
- Panelboard Type
- Main lugs
- Product or Component Type
- Interiors
- Branch Circuit Breaker Type
- QOB, QOB-VH, QHB
- Busbar Material
- Aluminium
- Number of spaces
- 42
- Enclosure Nominal Height
- 38 in (965.20 mm)
- Enclosure Nominal Width
- 20 in (508.00 mm)
- Enclosure Nominal Depth
- 5.75 in (146.05 mm) NEMA 1, 6.5 in (165.10 mm) NEMA 3R/5/12
- Line Rated Current
- 225 A
- [Iu] rated interrupted current
- 10 kA, 22 kA, 65 kA
- Wiring configuration
- 4-wire
- Number of Phases
- 3 phase
- Voltage Rating
- 240 V AC, 48 V DC
- connections - terminals
- Lug line AWG 6...350 kcmil aluminium, Lug neutral AWG 6...350 kcmil aluminium
- tightening torque
- 40.01…50.01 lbf.in (4.52…5.65 N.m) 0.02…0.10 in² (13.30…67.43 mm²) (AWG 6...AWG 2/0), 100.01 lbf.in (11.3 N.m) 0.02…0.10 in² (13.30…67.43 mm²) (AWG 6...AWG 2/0), 274.99 lbf.in (31.07 N.m) 0.02…0.27 in² (13.30…177.3 mm²) (AWG 6...350 kcmil), 274.99 lbf.in (31.07 N.m) 0.02…0.20 in² (13.30…126.7 mm²) (AWG 6...250 kcmil), 274.99 lbf.in (31.07 N.m) 0.17…0.24 in² (107.2…152 mm²) (AWG 4...300 kcmil)
- Height
- 33.00 in (838.20 mm)
- Width
- 10.44 in (265.18 mm)
- Net Weight
- 17.17 lb(US) (7.79 kg)
- standards
- CSA, UL
- Category
- 09151-NQ RTA PANELBOARDS
- Discount Schedule
- PE1A
- GTIN
- 785901507864
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Warranty
- 18 months
