M9A26946 | Multi9 - shunt trip release with OC - MX + OF - 110/415 V AC - 110/130 V DC | Square D by Schneider Electric

Brand: Square DSKU: M9A26946

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to M9A26946

Jump to: Overview & Specifications Reviews

Overview Details for M9A26946

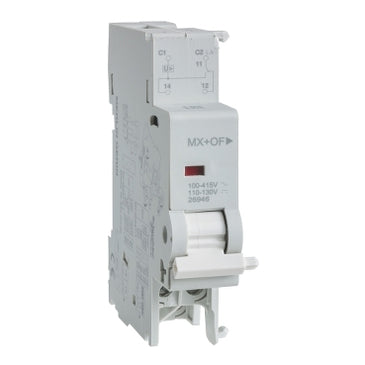

Multi9 - shunt trip release with OC - MX + OF - 110/415 V AC - 110/130 V DC

This Acti9 MX+OF electrical tripping auxiliary for is a shunt trip release device with open/close auxiliary contact. It is dedicated to Multi9 GFP, C60BP, C60SP, C60BPR. This device includes an open/close contact OF to indicated the position of the associated device. The width in 9mm pitches is 2. The Uc control circuit voltage is 110...415VAC or 110...130VDC . It can be mounted on a DIN rail for modular installation. The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with EN/IEC 60947-1 standards.

Specifications

range of product: Multi9
Product or Component Type: Shunt trip release with OC contact
Device short name: MX + OF
Signal contacts composition: 1 C/O
[Ie] rated operational current: 3 A 415 V AC, 6 A <= 240 V AC
[Uc] control circuit voltage: 110...415 V AC 50/60 Hz, 110...130 V DC
9 mm pitches: 2
range compatibility: Multi 9 (Multi 9 C60) C60BP, Multi 9 (Multi 9 C60) C60BPR, Multi 9 (Multi 9 C60) C60SP, Multi 9 (Multi 9 GFP) GFP, Multi 9 (Multi 9 C60H-DC) C60H-DC
Local signalling: Action indicator
Mounting Mode: Fixed
Mounting Support: DIN rail
Height: 3.25 in (82.5 mm)
Width: 0.71 in (18 mm)
Depth: 2.68 in (68 mm)
Net Weight: 0.14 lb(US) (0.065 kg)
connections - terminals: Clamp terminal bottom) - 1 0.00 in² (2.5 mm²) AWG 14) - rigid, Clamp terminal bottom) - 2 0.00 in² (1.5 mm²) AWG 16) - rigid
wire stripping length: 0.35 in (9 mm) bottom
tightening torque: 8.85 lbf.in (1 N.m) bottom
standards: EN/IEC 60947-1
Product Certifications: CSA, CCC, UL, PCT, UR
pollution degree: 3
Ambient Air Temperature for Operation: -13…122 °F (-25…50 °C)
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
Category: 00948-M9 GEN 2 CB UL1077 / IEC
Discount Schedule: DE2
GTIN: 3606480639074
