LV426843 | Shunt trip (spring) MX, 110...130 V AC 50/60Hz, 125 V DC | Square D by Schneider Electric

Brand: Square DSKU: LV426843
Square D | LV426843
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LV426843

Overview Details for LV426843

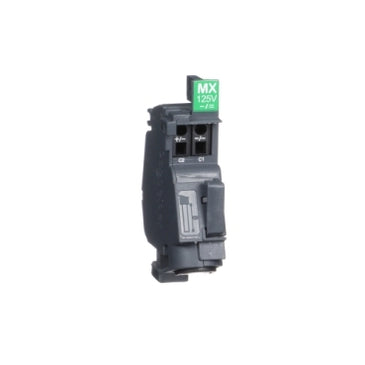

Shunt trip (spring) MX, 110...130 V AC 50/60Hz, 125 V DC

Shunt trip (spring) MX - 110...130 V AC 50/60Hz - 125 V DC
  • Device short name : MX
  • Product or component type: Voltage release
  • Device application: Control
  • Range compatibility: PowerPact B
  • Compact NSXm
  • Voltage release type: Shunt trip
  • Control circuit voltage : 110...130 V AC 50/60 Hz, 125 V DC
  • Mounting mode : Clip-on
This standard MX shunt trip is used on Compact NSXm and PowerPact B devices. This auxiliary is used for emergency off or failsafe remote opening applications. It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device. This MX auxiliary has a 110/130 VAC 50/60Hz or 125VDC rated voltage. It trips the circuit breaker when the control voltage rises above 70% of its rated value. It complies with IEC 60947-2 standard. Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil.

Specifications

range
ComPact
Range of Product
ComPacT NSXm new generation
device short name
MX
Product or Component Type
Voltage release
Device Application
Control
voltage release type
Opening coil;Shunt trip release
Control Type
Standard
[Uc] control circuit voltage
110...130 V AC 50/60 Hz;125 V DC
range compatibility
ComPact (ComPacT NSXm new generation);ComPact (ComPact NSXm);PowerPact (PowerPact B)
Operating threshold
0.7 Un opening
response time
< 50 ms
control signal type
Impulse;Maintained
impulse duration
>= 20 ms
auxiliary connection terminal
spring
Category
01136-PP-B FRAME ACCESSORIES
Discount Schedule
DE2
GTIN
3606485413068
Returnability
Yes
Country of origin
FR
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
0.59 in (1.5 cm)
Package 1 Width
2.24 in (5.7 cm)
Package 1 Length
2.48 in (6.3 cm)
Package 1 Weight
1.27 oz (36.0 g)
Unit Type of Package 2
S03
Number of Units in Package 2
120
Package 2 Height
11.81 in (30.0 cm)
Package 2 Width
11.81 in (30.0 cm)
Package 2 Length
15.75 in (40.0 cm)
Package 2 Weight
17.20 lb(US) (7.8 kg)
