Details for HU463

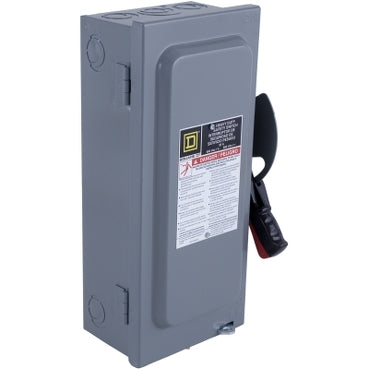

Safety switch, heavy duty, non fusible, 100A, 4 poles, 75hp, 600VAC/DC, NEMA1

These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs.

Specifications

Product: Single Throw Safety Switch
Duty Rating: Heavy duty
Device Application: Heavy application
Disconnect Type: Non-fusible disconnect
Factory Installed Neutral: None
Phase: 3 phase
Number of Poles: 4
Current Rating: 100 A
Voltage Rating: 600 V AC/DC
Enclosure Rating: NEMA 1 steel
Motor power hp: 30 hp at 240 V AC 50-60 Hz for 2 phases motors;40 hp at 240 V AC 50-60 Hz for 3 phase motors;50 hp at 480 V AC 50-60 Hz for 2 phases motors;75 hp at 480 V AC 50-60 Hz for 3 phase motors;50 hp at 600 V AC 50-60 Hz for 2 phases motors;75 hp at 600 V AC 50-60 Hz for 3 phase motors;20 hp at 250 V DC;30 hp at 600 V DC
Mounting Type: Surface
Electrical Connection: Lugs
wiring configuration: 4-wire
Wire Size: AWG 12...AWG 1/0 aluminium;AWG 14...AWG 1/0 copper
tightening torque: 50 lbf.in (5.65 N.m) (AWG 1...AWG 3/0);45 lbf.in (5.08 N.m) (AWG 6...AWG 4);40 lbf.in (4.52 N.m) 0.01 in² (8.367 mm²) (AWG 8);35 lbf.in (3.95 N.m) 0.00…0.01 in² (2.06…5.261 mm²) (AWG 14...AWG 10)
Depth: 6.85 in (173.99 mm)
Width: 16.13 in (409.70 mm)
Height: 20.5 in (520.70 mm)
Net Weight: 28.66 lb(US) (13 kg)
Certifications: UL listed file E2875
Category: 00008-H&HU SW;2&3P;N1;30-200A
Discount Schedule: DE1
GTIN: 785901505938
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 7.10 in (18.034 cm)
Package 1 Width: 16.80 in (42.672 cm)
Package 1 Length: 25.70 in (65.278 cm)
Package 1 Weight: 28.91 lb(US) (13.113 kg)
Warranty: 18 months
