CAD32B7 | TeSys Deca control relay - 3 NO + 2 NC - <= 690 V - 24 V AC standard coil | Square D by Schneider Electric

Brand: Square DSKU: CAD32B7

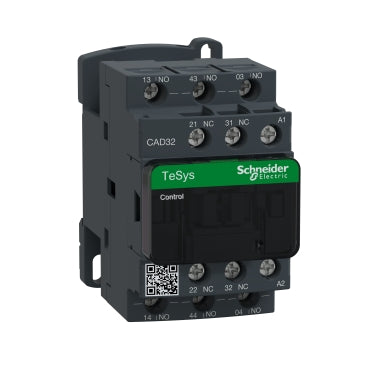

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CAD32B7

Jump to: Overview & Specifications Reviews

Overview Details for CAD32B7

TeSys Deca control relay - 3 NO + 2 NC - <= 690 V - 24 V AC standard coil

TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).

Specifications

range: TeSys;TeSys Deca
product name: TeSys CAD
Product or Component Type: Control relay
device short name: CAD
contactor application: Control circuit
utilisation category: AC-14;AC-15;DC-13
pole contact composition: 3 NO + 2 NC
[Ue] rated operational voltage: <= 690 V AC 25...400 Hz
control circuit type: AC 50/60 Hz
[Uc] control circuit voltage: 24 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage: 6 kV IEC 60947
[Ith] conventional free air thermal current: 10 A 140 °F (60 °C)
Irms rated making capacity: 140 A AC IEC 60947-5-1;250 A DC IEC 60947-5-1
[Icw] rated short-time withstand current: 100 A - 1 s;120 A - 500 ms;140 A - 100 ms
associated fuse rating: 10 A gG IEC 60947-5-1
[Ui] rated insulation voltage: 600 V UL;600 V CSA;690 V IEC 60947-5-1
Mounting Support: Plate;Rail
connections - terminals: screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end;screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)flexible without cable end;screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible with cable end;screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)flexible with cable end;screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)solid without cable end;screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)solid without cable end
tightening torque: 10.62 lbf.in (1.2 N.m) screw clamp terminals Philips No 2;10.62 lbf.in (1.2 N.m) screw clamp terminals flat Ø 6 mm;10.62 lbf.in (1.2 N.m) screw clamp terminals pozidriv No 2
control circuit voltage limits: 0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz;0.8...1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz;0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz;1...1.1 Uc 140…158 °F (60…70 °C) operational AC 50/60 Hz
operating time: 12...22 ms coil energisation and NO closing;4...12 ms coil de-energisation and NO opening;4...19 ms coil energisation and NC opening;6...17 ms coil de-energisation and NC closing
mechanical durability: 30 Mcycles
maximum operating rate: 180 cyc/mn
inrush power in VA: 70 VA 50 Hz 68 °F (20 °C))
hold-in power consumption in VA: 8 VA 50 Hz 68 °F (20 °C))
minimum switching voltage: 17 V
minimum switching current: 5 mA
non-overlap time: 1.5 ms on energisation between NC and NO contact;1.5 ms on de-energisation between NC and NO contact
insulation resistance: > 10 MOhm
mechanical robustness: Shocks control relay open10 Gn for 11 ms IEC 60068-2-27;Shocks control relay closed15 Gn for 11 ms IEC 60068-2-27;Vibrations control relay open2 Gn;5...300 Hz IEC 60068-2-6;Vibrations control relay closed4 Gn;5...300 Hz IEC 60068-2-6
Height: 3.03 in (77 mm)
Width: 1.77 in (45 mm)
Depth: 3.31 in (84 mm)
Net Weight: 1.28 lb(US) (0.58 kg)
standards: BS 4794;EN 60947-5;IEC 60947-5-1;NF C 63-140;VDE 0660;IEC 60335-1
Product Certifications: CSA;UL;UKCA
IP degree of protection: IP2x front face VDE 0106
protective treatment: TH IEC 60068
ambient air temperature for operation: -40…140 °F (-40…60 °C);140…158 °F (60…70 °C) with derating
Ambient Air Temperature for Storage: -76…176 °F (-60…80 °C)
operating altitude: 0...9842.52 ft (0...3000 m)
Category: 22371-RELAYS;CONTROL
Discount Schedule: I12
GTIN: 3389110399219
Returnability: Yes
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.97 in (5 cm)
Package 1 Width: 3.62 in (9.2 cm)
Package 1 Length: 4.41 in (11.2 cm)
Package 1 Weight: 12.59 oz (357 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 20
Package 2 Height: 5.91 in (15 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 16.48 lb(US) (7.474 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 320
Package 3 Height: 29.53 in (75 cm)
Package 3 Width: 23.62 in (60 cm)
Package 3 Length: 31.50 in (80 cm)
Package 3 Weight: 286.65 lb(US) (130.02 kg)
Warranty: 18 months
