AR3300 | APC NetShelter SX, Server Rack Enclosure, 42U, Black, 1991H x 600W x 1200D mm | APC by Schneider Electric

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to AR3300

Jump to: Documents Overview Specifications Reviews

Documents and manuals

APC AR3300 Documents

Datasheet More Info

Overview

Details for AR3300

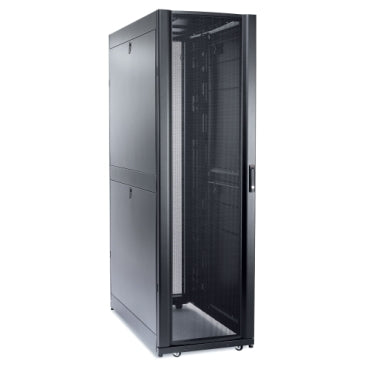

APC NetShelter SX, Server Rack Enclosure, 42U, Black, 1991H x 600W x 1200D mm

An industry standard server rack ready for medium to high density environments with height designed to easily fit through standard doorways. Deeper rack design provides enough rack mounting space for even the deepest devices and still plenty of room for vertically mounting Rack PDUs and cable management. It provides plenty of clearance at the back for Rack PDUs and cable managers not to interfere with IT device hot swappable components.

Specifications

Lead time: Usually in Stock
Number of rack unit: 42U
provided equipment: Baying hardware, Key(s), Keyed-alike doors and side panels, Leveling feet, Mounting Hardware, Pre-installed casters, Side Panels
Height: 78.39 in (199.1 cm)
Width: 23.62 in (60 cm)
Depth: 47.24 in (120 cm)
Net Weight: 295.62 lb(US) (134.09 kg)
Color: Black
Mounting preference: No preference
Mounting Mode: Not rack-mountable
Maximum Mounting Depth: 41.26 in (104.8 cm)
Minimum Mounting Depth: 7.52 in (19.1 cm)
Rack Width: 19"
marking: 14 gauge EIA mounting rail, 16 gauge front door, 16 gauge post, 18 gauge rear door, 18 gauge roof, 18 gauge side panels
permanent permissible load: 2250 lb(US) (1020.58 kg) dynamic, 3750 lb(US) (1700.97 kg) static
standards: UL 2416, UL 60950-1, EIA-310E
GTIN: 731304256274
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 83.39 in (211.8 cm)
Package 1 Width: 29.61 in (75.2 cm)
Package 1 Length: 52.52 in (133.4 cm)
Package 1 Weight: 328.69 lb(US) (149.09 kg)
Warranty: 5 year repair or replace
