9001KT35G31 | Push-to-test pilot light, Harmony 9001K, metal, polycarbonate, fresnel, green, 30mm, 24-28V | Square D by Schneider Electric

Brand: Square DSKU: 9001KT35G31

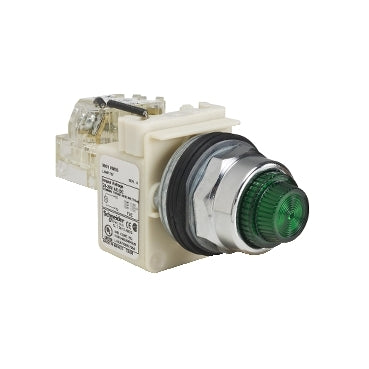

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 9001KT35G31

Push-to-test pilot light, Harmony 9001K, metal, polycarbonate, fresnel, green, 30mm, 24-28V

Range of Product: Harmony 9001K
Product or Component Type: Push-to-test pilot light
Device short name: K
Bezel material: Metal
Mounting diameter: 1.18 in (30 mm)
lens type: Fresnel plastic
Cap/operator or lens colour: Green
Bulb base: BA 9s
light block supply: Full voltage 24 V, Full voltage 28 V
shape of screw head: Round
Light source: Incandescent bulb
Operating Mode: Push-to-test
Lens type: Fresnel
[Us] rated supply voltage: 24...28 V
Light block supply: Full voltage
Contacts type and composition: 1 C/O
Lens material: Polycarbonate
Size: 30 mm
Product Certifications: CE, UL listed file E42259 CCN NKCR, CSA LR25490 class 3211 03
NEMA degree of protection: NEMA 1/2/3/3R/4/6/12/13
Category: 21426-9001 K (NOT KA,KM,KX)
Discount Schedule: CS1
GTIN: 785901036081
Returnability: No
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.08 in (12.903 cm)
Package 1 Width: 2.00 in (5.08 cm)
Package 1 Length: 12.90 in (32.774 cm)
Package 1 Weight: 6.40 oz (181.437 g)
Warranty: 18 months
