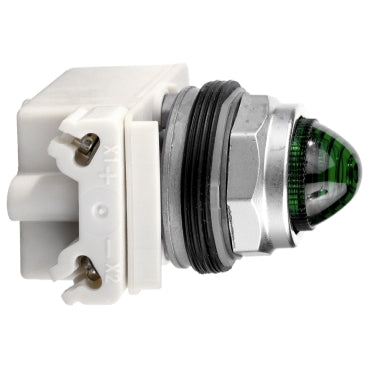

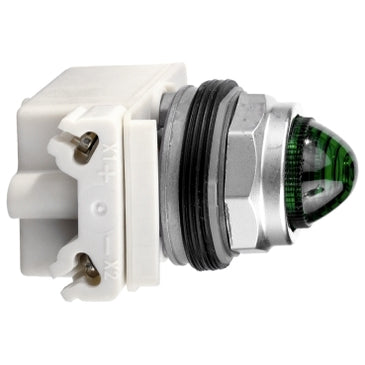

9001KP35LGG9 | Pilot light, Harmony 9001K, metal, polycarbonate, domed, green, 30mm, LED green, 24...28V | Square D by Schneider Electric

Brand: Square DSKU: 9001KP35LGG9

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9001KP35LGG9

Jump to: Overview & Specifications Reviews

Overview Details for 9001KP35LGG9

Pilot light, Harmony 9001K, metal, polycarbonate, domed, green, 30mm, LED green, 24...28V

This Harmony 9001K, green pilot light with integral LED and plastic dome is supplied with 24V AC/DC. It has a chromium-plated metal bezel. This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Specifications

Range of Product: Harmony 9001K
Product or Component Type: Pilot light
Device short name: 9001K
Bezel material: Metal
Mounting diameter: 1.18 in (30 mm)
Shape of signaling unit head: Round
lens type: Domed plastic
Cap/operator or lens colour: Green
light source: Green LED
Bulb base: BA 9s
light block supply: Direct 24...28 V AC/DC
connections - terminals: Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
tightening torque: 7.08 lbf.in (0.8 N.m) IEC 60947-1
Shape of screw head: Cross slotted
shape of screw head: Cross slotted
Operating position: Any position
[Ui] rated insulation voltage: 250 V 2)IEC 60947-1
[Uimp] rated impulse withstand voltage: 2.5 kV IEC 60947-1
short-circuit protection: 10 A cartridge fuse IEC 60947-5-1
Light source: LED
[Ith] conventional free air thermal current: 10 A
CAD overall width: 2.13 in (54 mm)
CAD overall height: 2.76 in (70 mm)
CAD overall depth: 1.65 in (42 mm)
[Us] rated supply voltage: 24...28 V AC/DC
Net Weight: 0.30 lb(US) (0.134 kg)
Device presentation: Complete product
Lens type: Domed
[Us] rated supply voltage: 24...28 V
Light source colour: Green
Lens material: Polycarbonate
Size: 30 mm
standards: EN/IEC 60947-1, JIS C 852, EN/IEC 60947-5-4, UL 508, JIS C8201-5-1, EN/IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-1
Product Certifications: NEMA, UL 508
Protective treatment: TC
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation: -13…158 °F (-25…70 °C)
vibration resistance: 7 gn 2…500 Hz)IEC 60068-2-6
shock resistance: 50 gn IEC 60068-2-27
overvoltage category: Class II IEC 61140
IP degree of protection: IP66 IEC 60529
NEMA degree of protection: NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6
Category: 21426-9001 K (NOT KA,KM,KX)
Discount Schedule: CS1
GTIN: 3389118041264
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.24 in (5.7 cm)
Package 1 Width: 1.85 in (4.7 cm)
Package 1 Length: 3.70 in (9.4 cm)
Package 1 Weight: 4.90 oz (139.0 g)
Unit Type of Package 2: S01
Number of Units in Package 2: 16
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 5.91 in (15.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 5.40 lb(US) (2.448 kg)
Warranty: 18 months
