8501XO40XTD1V02 | NEMA Control Relay, Type X, timing, 1 minute off delay, 10A resistive at 600 VAC, 4 normally open, 120 VAC 60 Hz coil | Square D by Schneider Electric

Brand: Square DSKU: 8501XO40XTD1V02

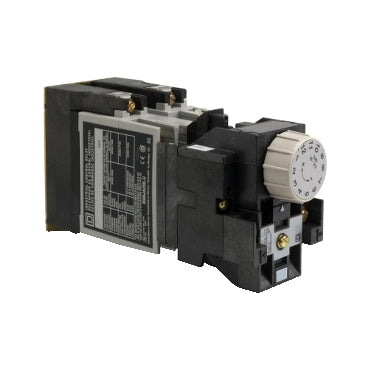

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 8501XO40XTD1V02

Jump to: Overview & Specifications Reviews

Overview Details for 8501XO40XTD1V02

NEMA Control Relay, Type X, timing, 1 minute off delay, 10A resistive at 600 VAC, 4 normally open, 120 VAC 60 Hz coil

8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity.RS miniature plug in relays are designed control circuit logic applications. They are ideal for applications where long life, high reliablity and ease of maintence are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. The relays feature straight through wiringwhich make wiring easier. Plug in contact cartridges makes contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. The replaceable coils are available in a wide variety of voltages. 8501X NEMA machine tool relays are UL Listed and CSA Certified.

Specifications

Range: 8501X
Relay Type: Timing
Product: Relay
Current Rating: 10 A AC, 5 A DC
Number of Poles: 4P
Voltage Rating: 600 V AC
Coil Voltage: 110 V AC 50 Hz, 120 V AC 60 Hz
Coil Voltage Limints: Operational 0.85...1.1 Uc AC 50/60 Hz
Breaking Current: 6 A 120 V AC inductive control circuit UL 508, 3 A 240 V AC inductive control circuit UL 508, 1.5 A 480 V AC inductive control circuit UL 508, 1.2 A 600 V AC inductive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 508, 0.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC resistive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508
Making Current: 60 A 120 V AC inductive control circuit UL 508, 30 A 240 V AC inductive control circuit UL 508, 15 A 480 V AC inductive control circuit UL 508, 12 A 600 V AC inductive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508, 1.1 A 125 V DC inductive control circuit UL 508, 0.55 A 250 V DC inductive control circuit UL 508, 0.2 A 301...600 V DC inductive control circuit UL 508, 4 A 125 V DC inductive control circuit UL 508, 0.8 A 250 V DC resistive control circuit UL 508
Time delay type: Off-delay
Time Delay Time: 0.2...60 s
Coil Inrush Power: 148 VA 60 Hz, 143 VA 50 Hz
Coil Sealed Power: 23 VA 60 Hz, 25 VA 50 Hz
Device Operating Time: 15 ms - pick-up, 16 ms - drop-out
Contact Configuration: 4 NO 4 standard contact cartridges
Electrical Connection: Screw clamp terminals
Wire Gauge: AWG 18...AWG 12 copper
Terminal Tightening Torque: Control circuit 9.03…12.04 lbf.in (1.02…1.36 N.m) screw terminal
Mounting Type: Panel
Operating Temperature Range: -40…160 °F (-40…71 °C)
Height: 3.5 in (88.90 mm)
Width: 2.23 in (56.64 mm)
Depth: 6.55 in (166.37 mm)
Product Certifications: CSA LR60905 class 3211 03, UL listed file E78403 CCN NKCR
Category: 21158-8501 XO (AC)
Discount Schedule: CP2
GTIN: 785901537427
Returnability: No
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 7.62 in (19.355 cm)
Package 1 Width: 3.00 in (7.62 cm)
Package 1 Length: 19.35 in (49.161 cm)
Package 1 Weight: 2.68 lb(US) (1.216 kg)
Warranty: 18 months
