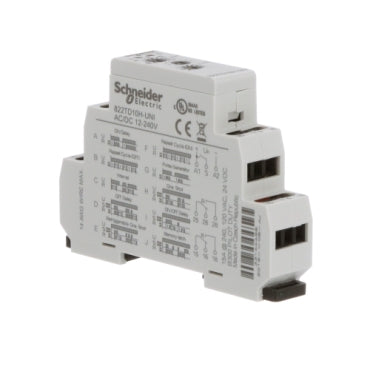

822TD10H-UNI | Time delay relay, Multifunction, DPDT, 100 ms to 10 days, 8 time scales, 10 time functions, DIN mounting support, 15A, 12...240V AC/DC | ~ Schneider Electric

Brand: Schneider ElectricSKU: 822TD10H-UNI

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 822TD10H-UNI

Jump to: Overview & Specifications Reviews

Overview Details for 822TD10H-UNI

Time delay relay, Multifunction, DPDT, 100 ms to 10 days, 8 time scales, 10 time functions, DIN mounting support, 15A, 12...240V AC/DC

The SE Relays 820 series, time delay relay offers 10 different timing functions with ultra-wide timing range of 10 ms to 10 days and meets most timing requirements. Universal voltage input of 12 to 240 VAC/VDC with contact ratings of 15A, 1/2hp at 1200VAC and 1hp at 240 VAC makes it suitable for wide range applications. Contact configaration is performed by silver alloy contacts as DPDT. Slim modular package 17.5mm and 35-mm DIN-rail mounting is ideal for tight spaces and allows easy installation. 2 LED status indicators shows input indication in green LED and output indication in red LED blinking light as timing status relay or red steady on light as energized relay status. Environmentally friendly design is compliant with the European Restriction of Hazardous Substances directive (RoHS).

Specifications

Product Range: Legacy
Product Type: Time delay relay
Switch Function: DPDT
Contacts Material: AgNi
Time Delay Type: Multifunction
Rated Supply Voltage: 12...240 V AC/DC 50...60 Hz
Time Delay Range: 100 ms...1 s;1...10 s;0.1...1 min;1...10 min;0.1...1 h;1...10 h;72 min...12 h;1...10 d
Control Type: With adjustment knob front
Voltage Range: 0.85...1.15 Un
Nominal Output Current: 15 A
Local Signalling: 1 LED red;blinking timing in progress;1 LED per input green
Repeat Accuracy: +/- 0.2 %
Minimum Pulse Duration: 25 ms
Reset Time: 150 ms maximum
Power Consumption in VA: 2 VA 240 V
Power Consumption in W: 1.5 W 24 V
Rated Operational Current: 15 A at 240 V AC-1
Motor Power HP: 0.5 hp 120 V AC;1 hp 240 V AC
Minimum Switching Current: 100 mA
Tightening Torque: 3.54 lbf.in (0.4 N.m)
AWG Gauge: AWG 14
Electrical Durability: 70000 cycles
Mechanical Durability: 30000000 cycles
Mounting Support: 35 mm DIN rail
Height: 2.57 in (65.4 mm)
Width: 0.69 in (17.6 mm)
Depth: 3.54 in (89.9 mm)
Product Weight: 3.00 oz (85 g)
Dielectric Strength: 4000 V between input and output;1000 V between open contacts
Standards: IEC 61812-1;IEC 61010-1
Product Certifications: UL;CEC;WEEE
Ambient Air Temperature for Storage: -22…158 °F (-30…70 °C)
Ambient Air Temperature for Operation: -4…131 °F (-20…55 °C)
IP Degree of Protection: IP20 IEC 60529 enclosure)
Category: 21127-ZELIO ICE CUBE RELAYS
Discount Schedule: CP2
GTIN: 3606480282034
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.54 in (9.0 cm)
Package 1 Width: 0.69 in (1.76 cm)
Package 1 Length: 2.56 in (6.5 cm)
Package 1 Weight: 2.47 oz (70.0 g)
Unit Type of Package 2: CAR
Number of Units in Package 2: 10
Package 2 Height: 2.95 in (7.5 cm)
Package 2 Width: 3.94 in (10.0 cm)
Package 2 Length: 8.74 in (22.2 cm)
Package 2 Weight: 1.98 lb(US) (0.9 kg)
