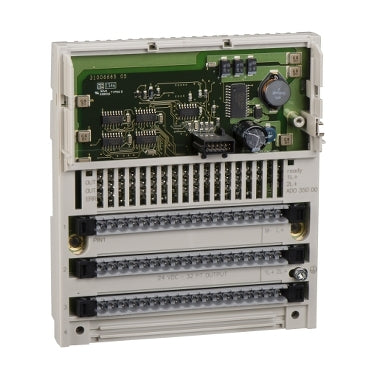

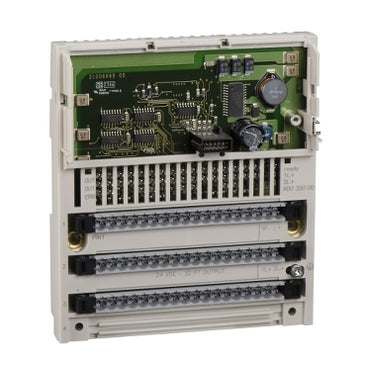

170ADO35000 | discrete output module Modicon Momentum - 32 O solid state | Square D by Schneider Electric

Brand: Square DSKU: 170ADO35000

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 170ADO35000

Jump to: Overview & Specifications Reviews

Overview Details for 170ADO35000

discrete output module Modicon Momentum - 32 O solid state

Specifications

Range of Product: Modicon Momentum automation platform
Product or Component Type: Discrete output base DC
Group of channels: 2 groups of 16 outputs
Discrete output number: 32
Discrete output type: Solid state switch
discrete output voltage: 24 V DC
Current per channel: 0.5 A
short-circuit protection: Outputs electronically protected
Protective treatment: TC
[Ue] rated operational voltage: 24 V DC
discrete output current: 16 A per module, 8 A per group
maximum leakage current: 1 mA 24 V DC
surge current: 5 A 1 ms
maximum voltage drop: <0.5 V 0.5 A at state 1
Output overload protection: Outputs electronically protected
response time: 0.1 ms from state 0 to state 1, 0.1 ms from state 1 to state 0
isolation between channels and bus: 500 V AC
Power dissipation: 6 W typical, 7.5 W maximum
Marking: CE
local signalling: for channel status 32 LEDs
current consumption: 250 mA 24 V DC
Terminals description PLC n°1: (15)OUT_DIS#15, TB, (2)OUT_DIS#2, (8)OUT_DIS#8, (L+)PW_POS, (16)OUT_DIS#16, (7)OUT_DIS#7, (M-)PW_NEG, (12)OUT_DIS#12, (9)OUT_DIS#9, (11)OUT_DIS#11, (14)OUT_DIS#14, (1)OUT_DIS#1, (5)OUT_DIS#5, (10)OUT_DIS#10, (13)OUT_DIS#13, (3)OUT_DIS#3, (4)OUT_DIS#4, (6)OUT_DIS#6
Terminals description PLC n°2: (6)OUT_DIS#22, (4)OUT_DIS#20, (7)OUT_DIS#23, (2L+)PW_POS, (3)OUT_DIS#19, TB_1, (8)OUT_DIS#24, (10)OUT_DIS#26, (12)OUT_DIS#28, (2)OUT_DIS#18, (13)OUT_DIS#29, (16)IN_DIS#32, (11)OUT_DIS#27, (14)OUT_DIS#30, (15)OUT_DIS#31, (5)OUT_DIS#21, (9)OUT_DIS#25, (1)OUT_DIS#17, (1L+)PW_POS
Depth: 1.87 in (47.5 mm)
Height: 5.57 in (141.5 mm)
Width: 4.92 in (125 mm)
Net Weight: 0.46 lb(US) (0.21 kg)
Product Certifications: CSA, UL
resistance to electrostatic discharge: 4 kV contact IEC 801-2, 8 kV on air IEC 801-2
resistance to electromagnetic fields: 9.14 V/m (10 V/m) 80...1000 MHz IEC 801-3
Ambient Air Temperature for Operation: 32…140 °F (0…60 °C)
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
Relative Humidity: 95 % without condensation
Operating altitude: <= 16404.2 ft (5000 m)
Category: 18206-MOMENTUM PROCESSORS,I/O BASES,CONN.
Discount Schedule: PC31
GTIN: 3595861147676
Returnability: No
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.17 in (5.5 cm)
Package 1 Width: 7.09 in (18.0 cm)
Package 1 Length: 10.24 in (26.0 cm)
Package 1 Weight: 14.22 oz (403.0 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 10
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 10.02 lb(US) (4.545 kg)
Warranty: 18 months
