XVUC9S | XVU Buzzer unit- black | Square D by Schneider Electric

Square D | XVUC9S

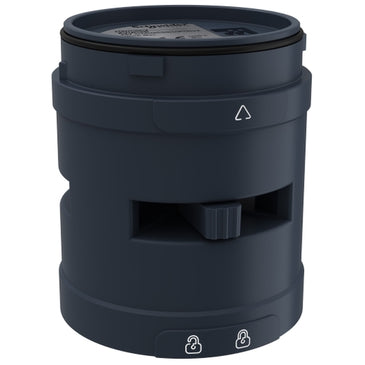

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to XVUC9S

Documents and manuals

Square D XVUC9S Documents

Overview

Details for XVUC9S

XVU Buzzer unit- black

This indicating bank buzzer is an accessory designed as an audible and signalling unit. It is supplied with 24V AC/DC and has a mounting diameter of 60mm. It fits for modular tower light for custom assembly. It has a continuous or intermittentt signal and its sound acoustic level is adjustable. It complies with CSA, UL, RoHS, CE standards and it has IP54 protection index.

Specifications

Range of product
Harmony XVU
Product or component type
Modular tower light
Beacon or indicator bank unit type
Buzzer unit
Mounting diameter
60 mm
Component name
XVU
Housing colour
Black
Signalling type
Continuous or intermittent buzzer
Material
PBT (polybutylene terephthalate) V-0 conforming to UL 94
ABS (acrylonitrile butadiene-styrene) V-0 conforming to UL 94
PC (polycarbonate) V-0 conforming to UL 94
Localisation on device
Top
Assembly style
Customer assembly
[Us] rated supply voltage
24 V AC/DC
Maximum power dissipation in W
1.7 W
Acoustic level
85 dB at 1 m
Sound frequency
2635 Hz
Current consumption
<= 70 mA
Length
58 mm
Net weight
0.077 kg
product certifications
UL
CE
CSA
Ambient air temperature for storage
-40…70 °C
Ambient air temperature for operation
-25…50 °C
IP degree of protection
IP54
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
9 cm
Package 1 Width
13.3 cm
Package 1 Length
9.1 cm
Package 1 Weight
172 g
Unit Type of Package 2
S03
Number of Units in Package 2
24
Package 2 Height
30 cm
Package 2 Width
30 cm
Package 2 Length
40 cm
Package 2 Weight
4.99 kg
Unit Type of Package 3
PAL
Number of Units in Package 3
192
Package 3 Height
70 cm
Package 3 Width
80 cm
Package 3 Length
60 cm
Package 3 Weight
39.68 kg
