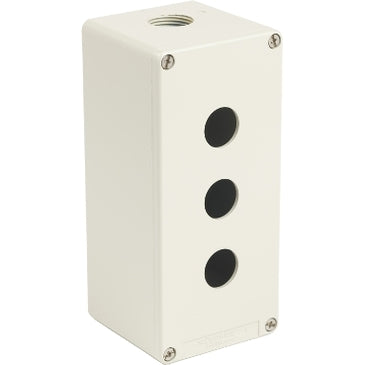

XAPG39503 | Die-cast empty control station, XAP-G, dia 22, 3 cut-outs | Square D by Schneider Electric

Brand: Square DSKU: XAPG39503
Square D | XAPG39503
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to XAPG39503

Overview Details for XAPG39503

Die-cast empty control station, XAP-G, dia 22, 3 cut-outs

XAPG 22mm enclosures are for industrial applications. These empty enclosures can be used with push buttons and pilot lights from the XB4 metal or XB5 plastic push button ranges. This grey die cast zinc alloy enclosure has openings for three operators. The spacing of the operator holes allows the enclosure vertically and have enough electrical clearance to mount the operators properly. The enclosure is NEMA 4 and 13 rated. Enclosure is 6.89 inches tall, 3.15 inches wide and 3.03 inches deep. The relay weighs 2.52 lbs. Enclosure is UL Listed and CSA certified. "It is suitable for automotive, textiles, timber, energy distribution, public works, building and airport applications." "This product is certified by CSA." "It is compatible with the XB4 range Ø 22mm control and signaling units." "Harmony XAM, XAP industrial IP67 enclosures combines simple installation, configuration flexibility and robust construction." "The Harmony XAM, XAP range of insulated or metal enclosures designed for use in severe environments."

Specifications

Range of Product
Harmony XAP
Product or Component Type
Die-cast empty control station
device short name
XAPG
product destination
For Ø 22 mm control and signalling units
number of cut-out
3 cut-outs
colour of base of enclosure
Grey RAL 7032)
colour of cover
Grey RAL 7032)
control station type
Metal
Material
Die cast zinc
sale per indivisible quantity
1
IP degree of protection
IP65 IEC 60529
resistance to chemical agents
Special treatment can be obtained on request
number of vertical rows
1
number of horizontal rows
3
cut-out dimensions
Ø 22 mm
cable entry
cable gland;1 x cable gland
thread type
3/4 NPT
CAD overall width
3.15 in (80 mm)
CAD overall height
6.89 in (175 mm)
CAD overall depth
3.03 in (77 mm)
Net Weight
2.52 lb(US) (1.145 kg)
compatibility code
XAPG
protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient air temperature for operation
-13…158 °F (-25…70 °C)
electrical shock protection class
Class I IEC 60536;Class I NF C 20-030
IK degree of protection
IK07 EN/IEC 62262
Category
22475-WALL STATIONS
Discount Schedule
CS2
GTIN
3389118381766
Returnability
Yes
Country of origin
MA
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
3.54 in (9.0 cm)
Package 1 Width
7.40 in (18.8 cm)
Package 1 Length
4.80 in (12.2 cm)
Package 1 Weight
2.88 lb(US) (1.306 kg)
Unit Type of Package 2
S02
Number of Units in Package 2
6
Package 2 Height
5.91 in (15.0 cm)
Package 2 Width
11.81 in (30.0 cm)
Package 2 Length
15.75 in (40.0 cm)
Package 2 Weight
17.99 lb(US) (8.16 kg)
Warranty
18 months
