VW3A1006 | Remote Display Terminal for Altivar 12 Variable Speed Drive, IP54 | Square D by Schneider Electric

Brand: Square DSKU: VW3A1006

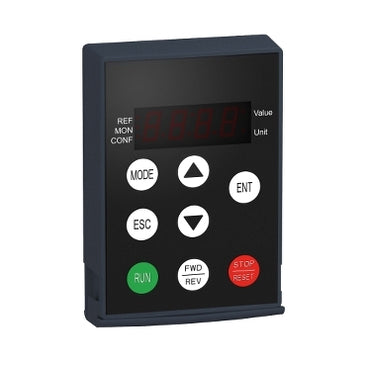

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VW3A1006

Jump to: Overview & Specifications Reviews

Overview Details for VW3A1006

Remote Display Terminal for Altivar 12 Variable Speed Drive, IP54

Remote Display Terminal for Altivar 12 Variable Speed DriveEnclosure Rating: IP54 This remote terminal is an option for variable speed drives of Altivar range. It is a dialogue option for the variable speed drive. Its protection index is IP54. This terminal is used to locate the Human-Machine Interface of the Altivar drive remotely on the door of an enclosure. Its maximum operating temperature is 50 °C. It weighs 250g. It is used to ccntrol, adjust, and configure the drive remotely, display the drive status and error codes. A remote-mounting cordset VW3A1104Rxx is also required, to be ordered separately. The ATV12 range meets basic machine requirements united with simplicity.

Specifications

Range of Product: Altivar
accessory / separate part type: Remote terminal
accessory / separate part category: Display and signalling accessory
accessory / separate part destination: Variable speed drive
Range Compatibility: Altivar Machine ATV320;Altivar 32;Altivar 12;Easy Altivar 310;Altivar 312 Solar;Altivar 312
IP Degree of Protection: IP54
Mounting Location: Door of enclosure
Net Weight: 0.55 lb(US) (0.25 kg)
Category: 22042-ATV12 DRIVE AND ACCESSORIES
Discount Schedule: CP4B
GTIN: 3606480074813
Returnability: Yes
Country of origin: CN
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.81 in (4.6 cm)
Package 1 Width: 2.64 in (6.7 cm)
Package 1 Length: 3.43 in (8.7 cm)
Package 1 Weight: 2.33 oz (66.0 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 90
Package 2 Height: 11.81 in (30.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 14.83 lb(US) (6.725 kg)
Warranty: 18 months
