VU-9313-680-5-14 | VB: 4 in, 3W Mix, Globe, FLG, UC, BR, 170 cv, 10 PSI; Act (M800A): Elec, Float/Prop, NSR, 24 VAC/VDC, 20-29 VDC, TB, 179 lbf, Linear, N1, FORTA | Schneider Electric

Schneider Electric | VU-9313-680-5-14

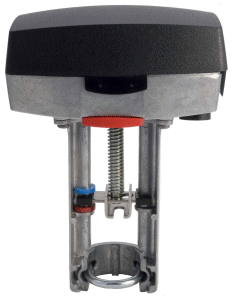

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VU-9313-680-5-14

Documents and manuals

Schneider Electric VU-9313-680-5-14 Documents

Overview

Details for VU-9313-680-5-14

VB: 4 in, 3W Mix, Globe, FLG, UC, BR, 170 cv, 10 PSI; Act (M800A): Elec, Float/Prop, NSR, 24 VAC/VDC, 20-29 VDC, TB, 179 lbf, Linear, N1, FORTA

Valve Assembly:
  • Body Size: 4 in
  • Configuration: 3-Way Mixing
  • Type: Globe
  • Connection: Flanged
  • Stem Flow Action: Stem up, mixing closed A to AB
  • Material Trim: Brass
  • Flow Coefficient: 170 cv
  • Close-Off Pressure: 10 PSI
  • Actuator Type: Electric
  • Control Signal: Floating, Proportional
  • Control Signal Range: 0 to 10 VDC, 2 to 10 VDC, 4 to 20mA with 500 ohm resistor
  • Loss of Power Type: Non-Spring Return
  • Loss of Power Position: Fail in place
  • Power Input Voltage: 24 VAC/VDC, 20 to 29 VDC
  • Leads and Connections: Terminal Block
  • Force: 179 lbf
  • Mechanical Movement: Linear
  • Protection Rating: NEMA 1
Assembly Components:
  • Valve Body: VB-9313-0-5-14
  • Valve Linkage: AV-822
  • Actuator: M800A
  • Actuator Range: FORTA

Product Alert: Not for use with steam.

Specifications

Item Number VU-9313-680-5-14
Brand Schneider Electric
Control Input Floating Point
Control Valves Type Globe Valve
CV / GPM 170 Cv
End Switch Yes
Housing NEMA 1
Spring Return Non-Spring Return
Valve Size 4" - 3 Way
Voltage 24V
