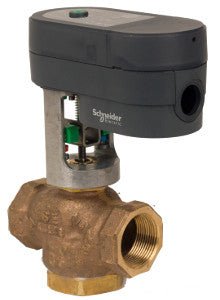

VF-7313-110-4-02 | VB: 1/2 in, 3W Mix, Globe, STR, NPT, BR, 2.2 cv, 250 PSI; Act (MG350V-24F): Elec, Float, NSR, 24 VAC, 78 lbf, Linear, N2 | Schneider Electric

VB: 1/2 in, 3W Mix, Globe, STR, NPT, BR, 2.2 cv, 250 PSI; Act (MG350V-24F): Elec, Float, NSR, 24 VAC, 78 lbf, Linear, N2

• Body Size: 1/2 in
• Configuration: 3-Way Mixing
• Type: Globe
• Body Pattern: Straightway
• Connection: NPT
• Stem Flow Action: Stem up flow B to AB
• Material Trim: Brass
• Flow Coefficient: 2.2 cv
• Close-Off Pressure: 250 PSI
• Actuator Type: Electric
• Control Signal: Floating
• Loss of Power Position: Non-Spring Return
• Power Input Voltage: 24 VAC, 20 to 24 VDC
• Force: 78 lbf
• Mechanical Movement: Linear
• Additional Features: LED Status Indicator
• Protection Rating: NEMA 2

• Valve Body: VB-7313-0-4-02
• Actuator: MG350V-24F
• Actuator Range: SmartX Actuator
• Actuator Comment: Compatible w/ 2-Position Form A 24 VAC/VDC input.
• Linkage: Integral linkage
