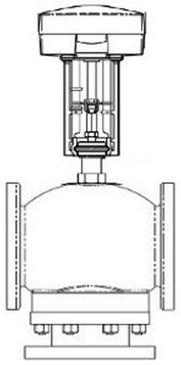

VU-8303-686-5-12 | VB: 2-1/2 in, 3W Mix/Div, Globe, FLG, UC, BR, See doc for cv, 35 PSI; Act (M1500A): Elec, Float/Prop, NSR, 24 VAC/VDC, TB, 337 l | Schneider Electric

VB: 2-1/2 in, 3W Mix/Div, Globe, FLG, UC, BR, See doc for cv, 35 PSI; Act (M1500A): Elec, Float/Prop, NSR, 24 VAC/VDC, TB, 337 l

• Body Size: 2-1/2 in
• Configuration: 3-Way Mixing/Diverting
• Type: Globe
• Connection: Flanged
• Stem Flow Action: Stem up, mixing closed A to AB, diverting closed AB to A
• Material Trim: Brass
• Flow Coefficient: See documentation for cv cv
• Close-Off Pressure: 35 PSI
• Actuator Type: Electric
• Control Signal: Floating, Proportional
• Control Signal Range: 0 to 10 VDC, 2 to 10 VDC, 4 to 20mA with 500 ohm resistor
• Loss of Power Type: Non-Spring Return
• Loss of Power Position: Fail in place
• Power Input Voltage: 24 VAC/VDC, 20 to 29 VDC
• Leads and Connections: Terminal Block
• Force: 337 lbf
• Mechanical Movement: Linear
• Protection Rating: NEMA 1

• Valve Body: VB-8303-0-5-12
• Valve Range: Balanced Plug Technology
• Valve Linkage: AV-822
• Actuator: M1500A
• Actuator Range: FORTA
