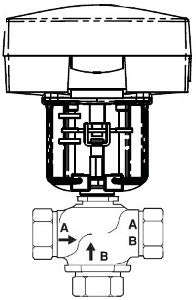

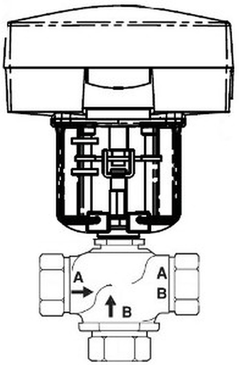

VU-7313-680-4-11 | VB: 2 in, 3W Mix, Globe, NPT, BR, 41 cv, 48 PSI; Act (M800A-VB): Elec, Float/Prop, NSR, 24 VAC/VDC, 20-29 VDC, TB, 179 lbf, Line | Schneider Electric

VB: 2 in, 3W Mix, Globe, NPT, BR, 41 cv, 48 PSI; Act (M800A-VB): Elec, Float/Prop, NSR, 24 VAC/VDC, 20-29 VDC, TB, 179 lbf, Line

Valve Assembly:

• Body Size: 2 in
• Configuration: 3-Way Mixing
• Type: Globe
• Connection: NPT
• Stem Flow Action: Stem down flow A to AB
• Material Trim: Brass
• Flow Coefficient: 41 cv
• Close-Off Pressure: 48 PSI
• Actuator Type: Electric
• Control Signal: Floating, Proportional
• Control Signal Range: 0 to 10 VDC, 2 to 10 VDC, 4 to 20mA with 500 ohm resistor
• Loss of Power Type: Non-Spring Return
• Loss of Power Position: Fail in place
• Power Input Voltage: 24 VAC/VDC, 20 to 29 VDC
• Leads and Connections: Terminal Block
• Force: 179 lbf
• Mechanical Movement: Linear
• Protection Rating: NEMA 1

Assembly Components:

• Valve Body: VB-7313-0-4-11
• Valve Range: Venta
• Valve Linkage: None, tool-less connection
• Actuator: M800A-VB
• Actuator Range: FORTA

Product Alert: Not for use with steam VB-7313 series three-way mixing valves control hot or chilled water in heating or air conditioning systems. These valves must be piped with two inlets (“A" and %" ports) and one outlet (“AB" port). They are used for twoposition or proportional control applications. Valve assemblies require an actuator and avalve linkage that must be purchased separately.
