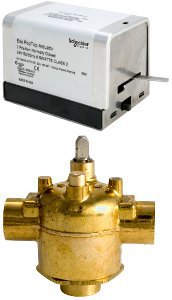

VT3213G13B020 | VB: 1/2 in, 3W Mix/Div, Zone, SWT, BR, 4 cv, 25 PSI; Act (AG13B020): Elec, 2Pos, SR, NC, 110-120 VAC, App, N1 | Schneider Electric

VB: 1/2 in, 3W Mix/Div, Zone, SWT, BR, 4 cv, 25 PSI; Act (AG13B020): Elec, 2Pos, SR, NC, 110-120 VAC, App, N1

Valve Assembly:

• Body Size: 1/2 in
• Configuration: 3-Way Mixing/Diverting
• Type: Zone
• Connection: Sweat
• Material Trim: Brass
• Flow Coefficient: 4 cv
• Control Media: Glycol 25 to 50% and Water
• Product Line: Schneider Electric
• Product Range: Erie PopTop
• Product Series: VT3

Product Alert: Not for use with steam

Close-Off Pressure: 25 PSI

Actuator Type: Electric

Control Signal: 2-Position (On/Off)

Loss of Power Type: Spring Return

Loss of Power Position: Normally closed

Power Input Voltage: 110 VAC, 115 VAC, 120 VAC

Leads and Connections: 18 in Appliance

Mechanical Movement: Rotary

Protection Rating: NEMA 1

Assembly Components:

• Valve Body: VT3213
• Valve Linkage: None, tool-less connection
• Actuator: AG13B020
• Actuator Range: Erie PopTop

Product Alert: Not for use with steam Erie™ PopTop™ Series valve bodies and actuators provide easy installation for a variety of heating and cooling applications. Valve’s actuator can be installed after valve body has been installed onto fan coil, baseboard or air handler. VS Series valves are available for low pressure steam applications.
