VT3211G13A020 | VB: 1/2 in, 3W Mix/Div, Zone, SWT, BR, 1.5 cv, 60 PSI; Act (AG13A020): Elec, 2Pos, SR, NC, 24 VAC, App, N1 | Schneider Electric

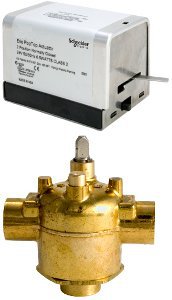

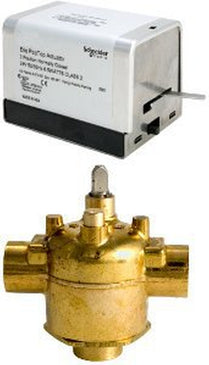

Schneider Electric | VT3211G13A020
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VT3211G13A020

Documents and manuals

Schneider Electric VT3211G13A020 Documents

Overview

Details for VT3211G13A020

VB: 1/2 in, 3W Mix/Div, Zone, SWT, BR, 1.5 cv, 60 PSI; Act (AG13A020): Elec, 2Pos, SR, NC, 24 VAC, App, N1

Valve Assembly:
  • Body Size: 1/2 in
  • Configuration: 3-Way Mixing/Diverting
  • Type: Zone
  • Connection: Sweat
  • Material Trim: Brass
  • Flow Coefficient: 1.5 cv
  • Control Media: Glycol 25 to 50% and Water
  • Product Line: Schneider Electric
  • Product Range: Erie PopTop
  • Product Series: VT3
Product Alert: Not for use with steam
  • Close-Off Pressure: 60 PSI
  • Actuator Type: Electric
  • Control Signal: 2-Position (On/Off)
  • Loss of Power Type: Spring Return
  • Loss of Power Position: Normally closed
  • Power Input Voltage: 24 VAC
  • Leads and Connections: 18 in Appliance
  • Mechanical Movement: Rotary
  • Protection Rating: NEMA 1
  • Assembly Components:
    • Valve Body: VT3211
    • Valve Linkage: None, tool-less connection
    • Actuator: AG13A020
    • Actuator Range: Erie PopTop

    Product Alert: Not for use with steam

    Specifications

    Item Number VT3211G13A020
    Brand Schneider Electric
    Control Input On/Off
    Control Valves Type Zone Valve
    CV / GPM 1.5 Cv
    End Switch No
    Housing NEMA 1
    Spring Return Spring Return
    Valve Size 0.5" - 3 Way
    Voltage 24V
