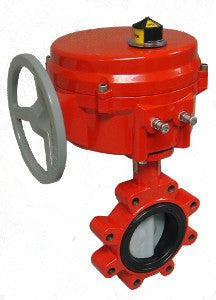

VSUS-6200-E32-L-18 | VB: 10 in, 2W, BFV, FLG, Under, FE, 5430 cv, 50 PSI; Act (BRY-S70-120-0201-SV): Elec, Prop, NSR, 120 VAC, TB, 600 in-lb, SPDT, HTR | Schneider Electric

VB: 10 in, 2W, BFV, FLG, Under, FE, 5430 cv, 50 PSI; Act (BRY-S70-120-0201-SV): Elec, Prop, NSR, 120 VAC, TB, 600 in-lb, SPDT, HTR

• Body Size: 10 in
• Configuration: 2-Way
• Type: Butterfly
• Connection: Flanged
• Body Style: Lug
• Disc Shape: Undercut
• Material Disc: Ductile Iron - Nylon 11 Coated
• Flow Coefficient: 5430 cv
• Close-Off Pressure: 50 PSI
• Actuator Type: Electric
• Control Signal: Proportional
• Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
• Loss of Power Type: Non-Spring Return
• Loss of Power Position: Fail in place
• Power Input Voltage: 120 VAC
• Leads and Connections: Terminal Block
• Torque: 600 in-lb
• Mechanical Movement: Rotary
• Auxiliary Switch: 2 SPDT
• Additional Features: Heater
• Protection Rating: NEMA 4

• Valve Body: VBU-6200-0-L-18
• Valve Linkage: Included with assembly
• Actuator: BRY-S70-120-0201-SV
