VS2222G24U020 | VB: 1/2 in, 2W, Zone, NPT, BR, 2.5 cv, 40 PSI; Act (AG24U020): Elec, 2Pos, SR, NO, 110-240 VAC, App, N1 | Schneider Electric

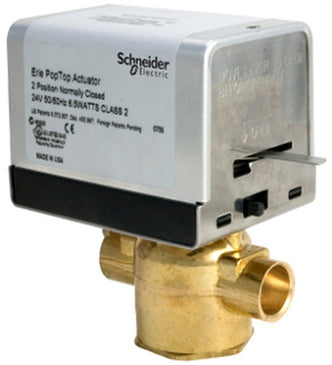

Schneider Electric | VS2222G24U020
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VS2222G24U020
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Schneider Electric VS2222G24U020 Documents

Datasheet Installation Instructions More Info

Overview

Details for VS2222G24U020

VB: 1/2 in, 2W, Zone, NPT, BR, 2.5 cv, 40 PSI; Act (AG24U020): Elec, 2Pos, SR, NO, 110-240 VAC, App, N1

Valve Assembly:
  • Body Size: 1/2 in
  • Configuration: 2-Way
  • Type: Zone
  • Connection: NPT
  • Material Trim: Brass
  • Flow Coefficient: 2.5 cv
  • Control Media: Glycol 25 to 50%, Steam and Water
  • Product Line: Schneider Electric
  • Product Range: Erie PopTop
  • Product Series: VS2
  • Close-Off Pressure: 40 PSI
  • Actuator Type: Electric
  • Control Signal: 2-Position (On/Off)
  • Loss of Power Type: Spring Return
  • Loss of Power Position: Normally open
  • Power Input Voltage: 110 VAC, 115 VAC, 120 VAC, 208 VAC, 230 VAC, 24 VAC, 240 VAC
  • Leads and Connections: 18 in Appliance
  • Mechanical Movement: Rotary
  • Protection Rating: NEMA 1
    • Assembly Components:
    • Valve Body: VS2222
    • Valve Linkage: None, tool-less connection
    • Actuator: AG24U020
    • Actuator Range: Erie PopTop

    Erie™ PopTop™ Series valve bodies and actuators provide easy installation for a variety of heating and cooling applications. The valve’s actuator can be installed after the valve body has been installed onto the fan coil, baseboard or air handler. VS Series valves are available for low pressure steam applications. PopTop Series are two position spring return valves. When powered, the actuator moves to the desired position, tensing the spring return system. When power is removed the actuator returns to the normal position. PopTop Series two position spring return valves can be purchased with an optional built-in auxiliary SPDT end switch for interfacing or signaling; for example, zone pump burner control. Actuators are designed fror cycling applications (not constantly powered).

    Specifications

    Item Number VS2222G24U020
    Brand Schneider Electric
    Control Input On/Off
    Control Valves Type Zone Valve
    CV / GPM 2.5 Cv
    End Switch No
    Housing NEMA 1
    Spring Return Spring Return
    Valve Size 0.5" - 2 Way
    Voltage 100-240V
