VS-9313-596-5-14 | VB: 4 in, 3W Mix, Globe, FLG, UC, BR, 170 cv, 12 PSI; Act (MS61-7203): Elec, Prop, 2-10 VDC/4-20 mAdc, SR, NC, 24 VAC/VDC, App, 220 lbf, Linear, N2 | Schneider Electric

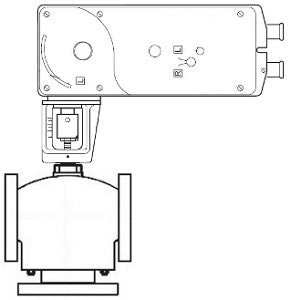

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VS-9313-596-5-14

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric VS-9313-596-5-14 Documents

Datasheet More Info

Overview

Details for VS-9313-596-5-14

VB: 4 in, 3W Mix, Globe, FLG, UC, BR, 170 cv, 12 PSI; Act (MS61-7203): Elec, Prop, 2-10 VDC/4-20 mAdc, SR, NC, 24 VAC/VDC, App, 220 lbf, Linear, N2

Valve Assembly:

Body Size: 4 in
Configuration: 3-Way Mixing
Type: Globe
Connection: Flanged
Stem Flow Action: Stem up, mixing closed A to AB
Material Trim: Brass
Flow Coefficient: 170 cv
Close-Off Pressure: 12 PSI
Actuator Type: Electric
Control Signal: Proportional
Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
Loss of Power Type: Spring Return
Loss of Power Position: Up/Retract A closed
Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
Leads and Connections: 3 ft Appliance
Force: 220 lbf
Mechanical Movement: Linear
Protection Rating: NEMA 2

Assembly Components:

Valve Body: VB-9313-0-5-14
Valve Linkage: AV-607-1
Actuator: MS61-7203
Actuator Range: SmartX Actuator

Product Alert: Not for use with steam.

Specifications

Item Number	VS-9313-596-5-14
Brand	Schneider Electric
Control Input	Modulating
Control Valves Type	Globe Valve
CV / GPM	170 Cv
End Switch	No
Housing	NEMA 1
Spring Return	Spring Return
Valve Size	4" - 3 Way
Voltage	24V
