VS-9313-596-5-12 | VB: 2-1/2 in, 3W Mix, Globe, FLG, UC, BR, 74 cv, 33 PSI; Act (MS61-7203): Elec, Prop, 2-10 VDC/4-20 mAdc, SR, NC, 24 VAC/VDC, App, 220 lbf, Linear, N2 | Schneider Electric
Overview
Details for VS-9313-596-5-12

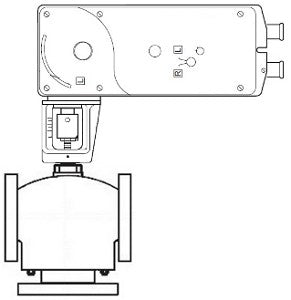

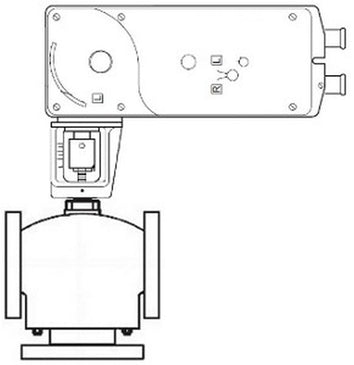

VB: 2-1/2 in, 3W Mix, Globe, FLG, UC, BR, 74 cv, 33 PSI; Act (MS61-7203): Elec, Prop, 2-10 VDC/4-20 mAdc, SR, NC, 24 VAC/VDC, App, 220 lbf, Linear, N2
Valve Assembly:- Body Size: 2-1/2 in
- Configuration: 3-Way Mixing
- Type: Globe
- Connection: Flanged
- Stem Flow Action: Stem up, mixing closed A to AB
- Material Trim: Brass
- Flow Coefficient: 74 cv
- Close-Off Pressure: 33 PSI
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
- Loss of Power Type: Spring Return
- Loss of Power Position: Up/Retract A closed
- Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
- Leads and Connections: 3 ft Appliance
- Force: 220 lbf
- Mechanical Movement: Linear
- Protection Rating: NEMA 2
- Valve Body: VB-9313-0-5-12
- Valve Linkage: AV-607-1
- Actuator: MS61-7203
- Actuator Range: SmartX Actuator
Product Alert: Not for use with steam.
Description
The VS-9313-596-5-12 is Schneider Electric’s linked global valve assembly from the VS-9000 series. The assembly comes with an electric actuator from the SmartX Linear series. This equipment is used for regulating fluids and steam in heating, ventilation, and air conditioning (HVAC) systems.
The electric SmartX Linear actuator mounts directly to the VS-9313’s on a 2-1/2 inches body. This three-way flow assembly supports both diverting and mixing applications. The actuator also supports proportional, floating, and two-position control. Additionally, the electric actuator eliminates the need for separate linkages due to an integral linkage and linear travel.
Typical Applications
Schneider Electric’s VS-9000 global valve and actuator assembly can be used for water and steam control in:
- HVAC systems with chilling and hot water coils
- VAV boxes
- Fan coil units
- Ventilation equipment
- Central sysem applications
Product Alert: Not for use with steam.
Specifications
Item Number | VS-9313-596-5-12 |
Brand | Schneider Electric |
Control Input | Modulating |
Control Valves Type | Globe Valve |
CV / GPM | 74 Cv |
End Switch | No |
freeship | upsground |
Housing | NEMA 1 |
Spring Return | Spring Return |
Valve Size | 2.5" - 3 Way |
Voltage | 24V |
