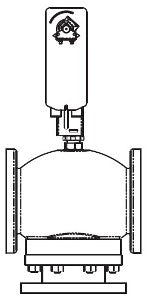

VS-8303-576-5-16 | VB: 6 in, 3W Mix/Div, Globe, FLG, UC, BR, 500 cv, 16 PSI; Act (MS40-7173): Elec, Prop, SR, 24 VAC/VDC, App, 150 in-lb, Rotary, N1/N4 | Schneider Electric

VB: 6 in, 3W Mix/Div, Globe, FLG, UC, BR, 500 cv, 16 PSI; Act (MS40-7173): Elec, Prop, SR, 24 VAC/VDC, App, 150 in-lb, Rotary, N1/N4

• Body Size: 6 in
• Configuration: 3-Way Mixing/Diverting
• Type: Globe
• Connection: Flanged
• Stem Flow Action: Stem up, mixing closed A to AB, diverting closed AB to A
• Material Trim: Brass
• Flow Coefficient: 500 cv
• Close-Off Pressure: 16 PSI
• Actuator Type: Electric
• Control Signal: Proportional
• Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
• Loss of Power Type: Spring Return
• Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
• Leads and Connections: 3 ft Appliance
• Torque: 150 in-lb
• Mechanical Movement: Rotary
• Protection Rating: NEMA 1, NEMA 4

• Valve Body: VB-8303-0-5-16
• Valve Range: Balanced Plug Technology
• Valve Linkage: AV-609-1
• Actuator: MS40-7173
• Actuator Range: SmartX Actuator
