VS-7323-812-4-06 | VB: 3/4 in, 3W Div, Globe, NPT, UO, BR, 7.5 cv, 200 PSI; Act (MS51-7103-150): Elec, Prop, 0-10 VDC, SR, NC, 24 VAC/VDC, Plen, 105 lbf, Linear, N2 | Schneider Electric

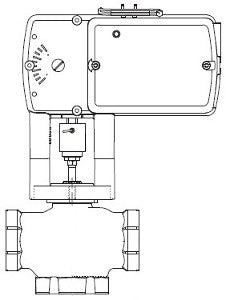

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VS-7323-812-4-06
Overview
Details for VS-7323-812-4-06
VB: 3/4 in, 3W Div, Globe, NPT, UO, BR, 7.5 cv, 200 PSI; Act (MS51-7103-150): Elec, Prop, 0-10 VDC, SR, NC, 24 VAC/VDC, Plen, 105 lbf, Linear, N2
Valve Assembly:- Body Size: 3/4 in
- Configuration: 3-Way Diverting
- Type: Globe
- Connection: NPT
- Stem Flow Action: Stem up flow B to AB
- Material Trim: Brass
- Flow Coefficient: 7.5 cv
- Close-Off Pressure: 200 PSI
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 0 to 10 VDC
- Loss of Power Type: Spring Return
- Loss of Power Position: Up/Retract A closed
- Power Input Voltage: 24 VAC/VDC, 20 to 30 VDC
- Leads and Connections: 3 ft Plenum
- Force: 105 lbf
- Mechanical Movement: Linear
- Protection Rating: NEMA 2
- Valve Body: VB-7323-0-4-06
- Valve Range: Venta
- Valve Linkage: None, tool-less connection
- Actuator: MS51-7103-150
- Actuator Range: SmartX Actuator
Product Alert: Not for use with steam
Specifications
| Item Number | VS-7323-812-4-06 |
| Brand | Schneider Electric |
| Control Input | Modulating |
| Control Valves Type | Globe Valve |
| CV / GPM | 7.5 Cv |
| End Switch | No |
| Housing | NEMA 1 |
| Spring Return | Spring Return |
| Valve Size | 0.75" - 3 Way |
| Voltage | 24V |
