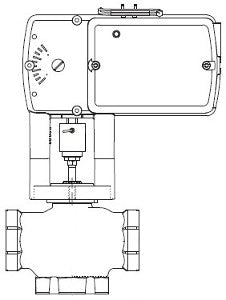

VS-7313-814-4-11 | VB: 2 in, 3W Mix, Globe, NPT, BR, 41 cv, 20 PSI; Act (MS51-7103-160): Elec, Prop, 4-20 mAdc, SR, NC, 24 VAC/VDC, Plen, 105 lbf, Linear, N2 | Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VS-7313-814-4-11
Overview
Details for VS-7313-814-4-11
VB: 2 in, 3W Mix, Globe, NPT, BR, 41 cv, 20 PSI; Act (MS51-7103-160): Elec, Prop, 4-20 mAdc, SR, NC, 24 VAC/VDC, Plen, 105 lbf, Linear, N2
Valve Assembly:- Body Size: 2 in
- Configuration: 3-Way Mixing
- Type: Globe
- Connection: NPT
- Stem Flow Action: Stem down flow A to AB
- Material Trim: Brass
- Flow Coefficient: 41 cv
- Close-Off Pressure: 20 PSI
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 4 to 20 mAdc
- Loss of Power Type: Spring Return
- Loss of Power Position: Up/Retract A closed
- Power Input Voltage: 24 VAC/VDC, 20 to 30 VDC
- Leads and Connections: 3 ft Plenum
- Force: 105 lbf
- Mechanical Movement: Linear
- Protection Rating: NEMA 2
- Valve Body: VB-7313-0-4-11
- Valve Range: Venta
- Valve Linkage: None, tool-less connection
- Actuator: MS51-7103-160
- Actuator Range: SmartX Actuator
Product Alert: Not for use with steam
Specifications
| Item Number | VS-7313-814-4-11 |
| Brand | Schneider Electric |
| Control Input | Modulating |
| Control Valves Type | Globe Valve |
| CV / GPM | 41 Cv |
| End Switch | No |
| Housing | NEMA 1 |
| Spring Return | Spring Return |
| Valve Size | 2" - 3 Way |
| Voltage | 24V |
