VS-7263-804-4-04 | VB: 1/2 in, 2W, Globe, STR, NPT, UC, SS, 4.4 cv, 250 PSI; Act (MS51-7103-100): Elec, Prop, 2-10 VDC, SR, NC, 24 VAC/VDC, Plen, 105 lbf, Linear, N2 | Schneider Electric

Schneider Electric | VS-7263-804-4-04

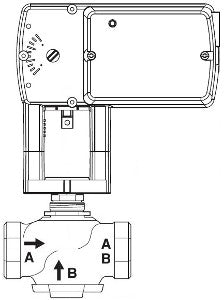

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VS-7263-804-4-04

Documents and manuals

Schneider Electric VS-7263-804-4-04 Documents

Overview

Details for VS-7263-804-4-04

VB: 1/2 in, 2W, Globe, STR, NPT, UC, SS, 4.4 cv, 250 PSI; Act (MS51-7103-100): Elec, Prop, 2-10 VDC, SR, NC, 24 VAC/VDC, Plen, 105 lbf, Linear, N2

Valve Assembly:
  • Body Size: 1/2 in
  • Configuration: 2-Way
  • Type: Globe
  • Body Pattern: Straightway
  • Connection: NPT
  • Stem Flow Action: Stem up A closed
  • Material Trim: Stainless Steel
  • Flow Coefficient: 4.4 cv
  • Close-Off Pressure: 250 PSI
  • Actuator Type: Electric
  • Control Signal: Proportional
  • Control Signal Range: 2 to 10 VDC
  • Loss of Power Type: Spring Return
  • Loss of Power Position: Normally closed
  • Power Input Voltage: 24 VAC/VDC, 20 to 30 VDC
  • Leads and Connections: 3 ft Plenum
  • Force: 105 lbf
  • Mechanical Movement: Linear
  • Protection Rating: NEMA 2
Assembly Components:
  • Valve Body: VB-7263-0-4-04
  • Valve Range: Venta
  • Valve Linkage: None, tool-less connection
  • Actuator: MS51-7103-100
  • Actuator Range: SmartX Actuator
The Schneider Electric VA, VF, and VS-7000 and -9000 series Linked Globe Valve Assemblies with Schneider Electric SmartX Linear Series Actuators are complete actuator/valve assemblies that accept two position, floating, or proportional control, respectively, from a DDC system or from a thermostat, for control of hot water, chilled water, and steam. These valve assemblies consist of Linear Series spring return Schneider Electric SmartX Actuators directly mounted on 1/2" up to 4" (15 mm to 80 mm) 2-way and 3-way globe valve bodies. 3-way assemblies are available for mixing (1/2" to 4") and diverting (1/2" to 2") applications. The Linear Series Schneider Electric SmartX Actuators feature linear travel and an integral linkage, eliminating the need for separate linkages. Typical applications include reheat on VAV boxes, fan coil units, hot and chilled water coils in air handling units, unit ventilators, and central system applications.

Specifications

Item Number VS-7263-804-4-04
Brand Schneider Electric
Control Input On/Off
Control Valves Type Globe Valve
CV / GPM 4.41 Cv
End Switch No
Housing NEMA 1
Spring Return Spring Return
Valve Size 0.5" - 2 Way
Voltage
