VS-7223-536-4-08 | VB: 1 in, 2W, Globe, STR, NPT, UC, BR, 14 cv, 125 PSI; Act (MS40-7043): Elec, Prop, 2-10 VDC/4-20 mAdc, SR, NC, 24 VAC/VDC, Plen, 35 in-lb, Rotary, N2 | Schneider Electric

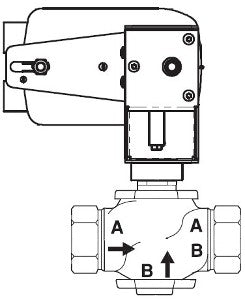

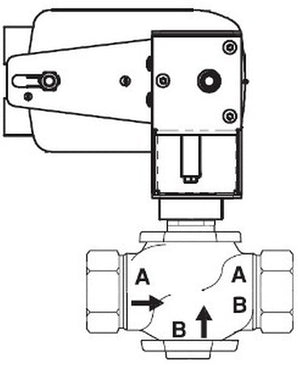

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VS-7223-536-4-08

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric VS-7223-536-4-08 Documents

Datasheet More Info

Overview

Details for VS-7223-536-4-08

VB: 1 in, 2W, Globe, STR, NPT, UC, BR, 14 cv, 125 PSI; Act (MS40-7043): Elec, Prop, 2-10 VDC/4-20 mAdc, SR, NC, 24 VAC/VDC, Plen, 35 in-lb, Rotary, N2

Valve Assembly:

Body Size: 1 in/li>
Configuration: 2-Way
Type: Globe
Body Pattern: Straightway
Connection: NPT
Stem Flow Action: Stem up A closed
Material Trim: Brass
Flow Coefficient: 14 cv
Close-Off Pressure: 125 PSI
Actuator Type: Electric
Control Signal: Proportional
Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
Loss of Power Type: Spring Return
Loss of Power Position: Normally closed
Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
Leads and Connections: 3 ft Plenum
Torque: 35 in-lb
Mechanical Movement: Rotary
Protection Rating: NEMA 2

Assembly Components:

Valve Body: VB-7223-0-4-08
Valve Range: Venta
Valve Linkage: AV-611
Actuator: MS40-7043
Actuator Range: SmartX Actuator

Specifications

Item Number	VS-7223-536-4-08
Brand	Schneider Electric
Control Input	Modulating
Control Valves Type	Globe Valve
CV / GPM	14 Cv
End Switch	No
Housing	NEMA 1
Spring Return	Spring Return
Valve Size	1" - 2 Way
Voltage	24V
