VS-7213-812-4-09 | VB: 1-1/4 in, 2W, Globe, STR, NPT, UO, BR, 20 cv, 90 PSI; Act (MS51-7103-150): Elec, Prop, 0-10 VDC, SR, NO, 24 VAC/VDC, Plen, 105 lbf, Linear, N2 | Schneider Electric

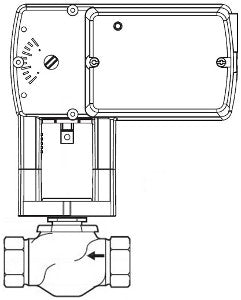

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VS-7213-812-4-09
Overview
Details for VS-7213-812-4-09
VB: 1-1/4 in, 2W, Globe, STR, NPT, UO, BR, 20 cv, 90 PSI; Act (MS51-7103-150): Elec, Prop, 0-10 VDC, SR, NO, 24 VAC/VDC, Plen, 105 lbf, Linear, N2
Valve Assembly:- Body Size: 1-1/4 in
- Configuration: 2-Way
- Type: Globe
- Body Pattern: Straightway
- Connection: NPT
- Stem Flow Action: Stem up A open
- Material Trim: Brass
- Flow Coefficient: 20 cv
- Close-Off Pressure: 90 PSI
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 0 to 10 VDC
- Loss of Power Type: Spring Return
- Loss of Power Position: Normally open
- Power Input Voltage: 24 VAC/VDC, 20 to 30 VDC
- Leads and Connections: 3 ft Plenum
- Force: 105 lbf
- Mechanical Movement: Linear
- Protection Rating: NEMA 2
- Valve Body: VB-7213-0-4-09
- Valve Range: Venta
- Valve Linkage: None, tool-less connection
- Actuator: MS51-7103-150
- Actuator Range: SmartX Actuator
Specifications
Item Number | VS-7213-812-4-09 |
Brand | Schneider Electric |
Control Input | Modulating |
Control Valves Type | Globe Valve |
CV / GPM | 20 Cv |
End Switch | No |
Housing | NEMA 1 |
Spring Return | Spring Return |
Valve Size | 1.25" - 2 Way |
Voltage | 24V |
