VS-7211-536-4-04 | VB: 1/2 in, 2W, Globe, STR, NPT, UO, BR, 4.4 cv, 250 PSI; Act (MS40-7043): Elec, Prop, SR, NO, 24 VAC/VDC, Plen, 35 in-lb, Rotary, N2 | Schneider Electric

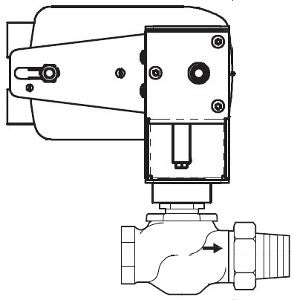

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VS-7211-536-4-04
Overview
Details for VS-7211-536-4-04
VB: 1/2 in, 2W, Globe, STR, NPT, UO, BR, 4.4 cv, 250 PSI; Act (MS40-7043): Elec, Prop, SR, NO, 24 VAC/VDC, Plen, 35 in-lb, Rotary, N2
Valve Assembly:- Body Size: 1/2 in
- Configuration: 2-Way
- Type: Globe
- Body Pattern: Straightway
- Connection: NPT
- Stem Flow Action: Stem up A open
- Material Trim: Brass
- Flow Coefficient: 4.4 cv
- Close-Off Pressure: 250 PSI
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
- Loss of Power Type: Spring Return
- Loss of Power Position: Normally open
- Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
- Leads and Connections: 3 ft Plenum
- Torque: 35 in-lb
- Mechanical Movement: Rotary
- Protection Rating: NEMA 2
- Valve Body: VB-7211-0-4-04
- Valve Range: Venta
- Valve Linkage: AV-611
- Actuator: MS40-7043
- Actuator Range: SmartX Actuator
Specifications
Item Number | VS-7211-536-4-04 |
Brand | Schneider Electric |
Control Input | Modulating |
Control Valves Type | Globe Valve |
CV / GPM | 4.41 Cv |
End Switch | No |
Housing | NEMA 1 |
Spring Return | Spring Return |
Valve Size | 0.5" - 2 Way |
Voltage |
