VP229E-32SN-013-U301 | SmartX, Pressure Independent Valve Assembly, 1-1/4 in, 2-way, 13 GPM, MP300-SRD spring return closed actuator | Schneider Electric

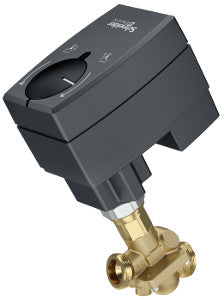

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VP229E-32SN-013-U301
Overview
Details for VP229E-32SN-013-U301
SmartX, Pressure Independent Valve Assembly, 1-1/4 in, 2-way, 13 GPM, MP300-SRD spring return closed actuator
Valve Assembly:- Body Size: 1-1/4 in
- Configuration: 2-Way
- Type: Pressure Independent
- Connection: G external thread
- Flow Rate: 13 gpm
- Close-Off Pressure: 232 PSI
- Actuator Type: Electric
- Control Signal: Proportional, Floating
- Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
- Loss of Power Type: Spring Return
- Loss of Power Position: Normally closed
- Power Input Voltage: 24 VAC
- Leads and Connections: No leads
- Force: 300 N
- Mechanical Movement: Linear
- Additional Features: LED Status Indicator, Valve stroke length selection
- Protection Rating: IP54
- Valve Body: VP229E-32BQSNT
- Valve Range: SmartX PIBCV
- Valve Linkage: None, tool-less connection
- Valve End Connection: 9112108032
- Actuator: MP300-SRD
- Actuator Range: SmartX Actuator
Product Alert: Not for use with steam
Specifications
Item Number | VP229E-32SN-013-U301 |
Brand | Schneider Electric |
Control Input | Floating Point |
Control Valves Type | Pressure Independent |
End Switch | No |
Housing | NEMA 1 |
Spring Return | Spring Return |
Valve Size | 32 mm - 2 Way |
Voltage |
