VP229E-32S-014-U301 | SmartX, Pressure Independent Valve Assembly, 1-1/4 in, 2-way, 14 GPM, PT ports, MP300-SRD spring return closed actuator | Schneider Electric

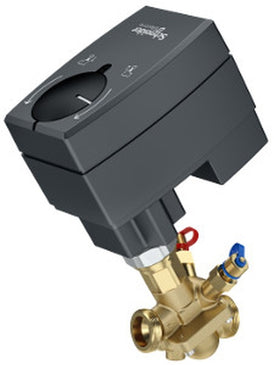

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VP229E-32S-014-U301
Overview
Details for VP229E-32S-014-U301
SmartX, Pressure Independent Valve Assembly, 1-1/4 in, 2-way, 14 GPM, PT ports, MP300-SRD spring return closed actuator
Valve Assembly:- Body Size: 1-1/4 in
- Configuration: 2-Way
- Type: Pressure Independent
- Connection: G external thread
- Flow Rate: 14 gpm
- Close-Off Pressure: 232 PSI
- Actuator Type: Electric
- Control Signal: Proportional, Floating
- Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
- Loss of Power Type: Spring Return
- Loss of Power Position: Normally closed
- Power Input Voltage: 24 VAC
- Leads and Connections: No leads
- Force: 300 N
- Mechanical Movement: Linear
- Additional Features: LED Status Indicator, Valve stroke length selection
- Protection Rating: IP54
- Valve Body: VP229E-32BQS
- Valve Range: SmartX PIBCV
- Valve Linkage: None, tool-less connection
- Valve End Connection: 9112108032
- Actuator: MP300-SRD
- Actuator Range: SmartX Actuator
Product Alert: Not for use with steam The SpaceLogic PIBCV range is a comprehensive selection of automatic balancing and control valves that provide flow limitation, with full control authority over hydronic regulation. Automatic balancing within PIBCV valves provide stable flow regulation regardless of pressure fluctuations in the system and all valves have an adjustable flow limitation set point. The control valve portion of the PIBCV further regulates the water/ glycol flow from close-off up to the maximum flow limit setting. Typical applications are temperature control of chillers, airhandling units, heat exchanges and terminal units such as fan coils, induction units and radiant panels.
Specifications
Item Number | VP229E-32S-014-U301 |
Brand | Schneider Electric |
Control Input | Floating Point |
Control Valves Type | Pressure Independent |
End Switch | No |
Housing | NEMA 1 |
Spring Return | Spring Return |
Valve Size | 32 mm - 2 Way |
Voltage |
