VP229E-25HN-L95-S101 | SmartX, Pressure Independent Valve Assembly, 1 in, 2-way, 9.5 GPM, MP131-24MP proportional actuator | Schneider Electric

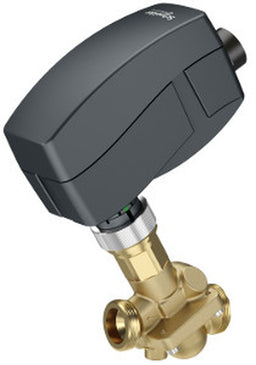

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VP229E-25HN-L95-S101
Overview
Details for VP229E-25HN-L95-S101
SmartX, Pressure Independent Valve Assembly, 1 in, 2-way, 9.5 GPM, MP131-24MP proportional actuator
Valve Assembly:- Body Size: 1 in
- Configuration: 2-Way
- Type: Pressure Independent
- Connection: G external thread
- Flow Rate: 9.5 gpm
- Close-Off Pressure: 232 PSI
- Actuator Type: Electric
- Control Signal: Proportional
- Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
- Loss of Power Type: Non-Spring Return
- Loss of Power Position: Fail in place
- Power Input Voltage: 24 VAC
- Leads and Connections: No leads
- Force: 130 N
- Mechanical Movement: Linear
- Additional Features: LED Status Indicator, Weekly anti blocking selection
- Protection Rating: IP42
- Valve Body: VP229E-25BQHNT
- Valve Range: SmartX PIBCV
- Valve Linkage: None, tool-less connection
- Valve End Connection: 9112108025
- Actuator: MP131-24MP
- Actuator Range: SmartX Actuator
Product Alert: Not for use with steam
Specifications
| Item Number | VP229E-25HN-L95-S101 |
| Brand | Schneider Electric |
| Control Input | Modulating |
| Control Valves Type | Pressure Independent |
| End Switch | No |
| Housing | NEMA 1 |
| Spring Return | Non-Spring Return |
| Valve Size | 25 mm - 2 Way |
| Voltage |
