VP222A-250S-1320-U181 | SmartX, Pressure Independent Valve Assembly, 10 in, 2-way, 1320 GPM, MP4000 proportional non-spring return actuator | Schneider Electric

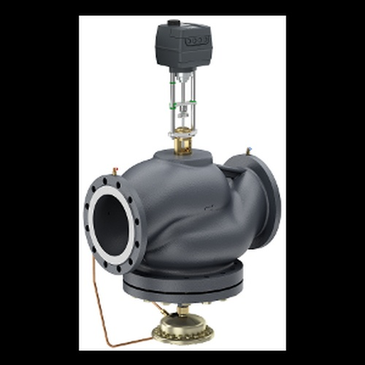

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VP222A-250S-1320-U181
Overview
Details for VP222A-250S-1320-U181
SmartX, Pressure Independent Valve Assembly, 10 in, 2-way, 1320 GPM, MP4000 proportional non-spring return actuator
Valve Assembly:- Body Size: Valve Body (VP222A-250CQS):
- Body Size: 10 in
- Configuration: 2-Way
- Type: Pressure Independent
- Connection: Flanged
- Material Trim: Brass
- Flow Rate Range: 528 to 1320 gpm
- Actuator Type: Actuator: (MP4000):
- Actuator Type: Electric
- Control Signal: Proportional
- Loss of Power Type: Non-Spring Return
- Loss of Power Position: Fail in place
- Power Input Voltage: 24 VAC
- Leads and Connections: No leads
- Force: 4000|N N
- Mechanical Movement: Linear
- Protection Rating: IP54
- Valve Body: VP222A-250CQS
- Valve Range: SmartX PIBCV
- Valve Linkage: None, tool-less connection
- Actuator: MP4000
- Actuator Range: SmartX Actuator
Product Alert: Not for use with steam
Specifications
| Item Number | VP222A-250S-1320-U181 |
| Brand | Schneider Electric |
| Control Input | Floating Point |
| Control Valves Type | Pressure Independent |
| End Switch | Yes |
| freeship | upsground |
| Housing | NEMA 1 |
| Spring Return | Non-Spring Return |
| Valve Size | 250 mm - 2 Way |
| Voltage |
