VP222A-250H-1630-U181 | SmartX, Pressure Independent Valve Assembly, 10 in, 2-way, 1630 GPM, MP4000 proportional non-spring return actuator | Schneider Electric

Brand: Schneider ElectricSKU: VP222A-250H-1630-U181
Schneider Electric | VP222A-250H-1630-U181

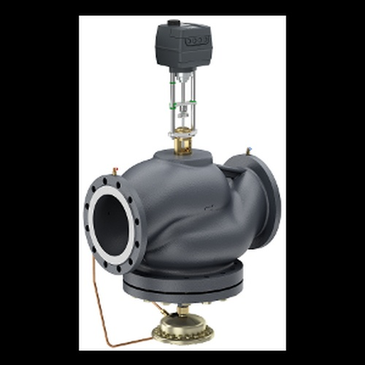

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VP222A-250H-1630-U181
Jump to: Overview & Specifications Reviews

Overview Details for VP222A-250H-1630-U181

SmartX, Pressure Independent Valve Assembly, 10 in, 2-way, 1630 GPM, MP4000 proportional non-spring return actuator

Valve Assembly:
  • Body Size: Valve Body (VP222A-250CQH):
    • Body Size: 10 in
    • Configuration: 2-Way
    • Type: Pressure Independent
    • Connection: Flanged
    • Material Trim: Brass
    • Flow Rate Range: 652 to 1630 gpm
    • Actuator Type: Actuator: (MP4000):

      • Actuator Type: Electric
      • Control Signal: Proportional
      • Loss of Power Type: Non-Spring Return
      • Loss of Power Position: Fail in place
      • Power Input Voltage: 24 VAC
      • Leads and Connections: No leads
      • Force: 4000|N N
      • Mechanical Movement: Linear
      • Protection Rating: IP54
      Assembly Components:
      • Valve Body: VP222A-250CQH
      • Valve Range: SmartX PIBCV
      • Valve Linkage: None, tool-less connection
      • Actuator: MP4000
      • Actuator Range: SmartX Actuator

      Product Alert: Not for use with steam

Specifications

Item Number VP222A-250H-1630-U181
Brand Schneider Electric
Control Input Floating Point
Control Valves Type Pressure Independent
End Switch Yes
freeship upsground
Housing NEMA 1
Spring Return Non-Spring Return
Valve Size 250 mm - 2 Way
Voltage
