VP222A-200S-880-U181 | SmartX, Pressure Independent Valve Assembly, 8 in, 2-way, 880 GPM, MP4000 proportional non-spring return actuator | Schneider Electric
Get your Special Pricing!
Log In / Create an Account for the LOWEST PRICING on our most Popular Brands!

Web Price:

$10,344.71
Availability: This product is currently available to purchase

Contact us for price breaks on large quantities!

This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs. Shipping and Returns Terms
Ship to Estimates
Are you from Chicago?
Yes / No
This item ships to
Change
Cancel


*shipping cost are estimated until you complete your order

Speak With a Technical Expert

Image for Technical Expert

Hours: 9am - 5pm CDT M-F

Call (847) 773-0645 Email Technical Expert

Documents: VP222A-200S-880-U181

Datasheet More Info

VP222A-200S-880-U181 | SmartX, Pressure Independent Valve Assembly, 8 in, 2-way, 880 GPM, MP4000 proportional non-spring return actuator | Schneider Electric

Brand: Schneider ElectricSKU: VP222A-200S-880-U181
Schneider Electric | VP222A-200S-880-U181

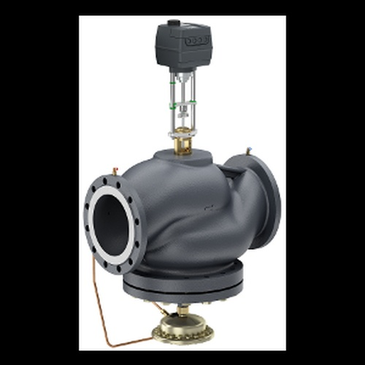

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VP222A-200S-880-U181
Jump to: Overview & Specifications Reviews

Overview Details for VP222A-200S-880-U181

SmartX, Pressure Independent Valve Assembly, 8 in, 2-way, 880 GPM, MP4000 proportional non-spring return actuator

Valve Assembly:
  • Body Size: Valve Body (VP222A-200CQS):
    • Body Size: 8 in
    • Configuration: 2-Way
    • Type: Pressure Independent
    • Connection: Flanged
    • Material Trim: Brass
    • Flow Rate Range: 352 to 880 gpm
    • Actuator Type: Actuator: (MP4000):

      • Actuator Type: Electric
      • Control Signal: Proportional
      • Loss of Power Type: Non-Spring Return
      • Loss of Power Position: Fail in place
      • Power Input Voltage: 24 VAC
      • Leads and Connections: No leads
      • Force: 4000|N N
      • Mechanical Movement: Linear
      • Protection Rating: IP54
      Assembly Components:
      • Valve Body: VP222A-200CQS
      • Valve Range: SmartX PIBCV
      • Valve Linkage: None, tool-less connection
      • Actuator: MP4000
      • Actuator Range: SmartX Actuator

      Product Alert: Not for use with steam

Specifications

Item Number VP222A-200S-880-U181
Brand Schneider Electric
Control Input Floating Point
Control Valves Type Pressure Independent
End Switch Yes
freeship upsground
Housing NEMA 1
Spring Return Non-Spring Return
Valve Size 200 mm - 2 Way
Voltage
