VP220E-50S-038-U331 | SmartX, Pressure Independent Valve Assembly, 2 in, 2-way, 38 GPM, MP500C-SRD proportional spring return actuator | Schneider Electric

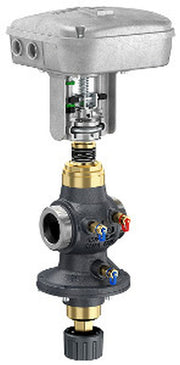

SmartX, Pressure Independent Valve Assembly, 2 in, 2-way, 38 GPM, MP500C-SRD proportional spring return actuator

Valve Assembly:

• Body Size: 2 in
• Configuration: 2-Way
• Type: Pressure Independent
• Connection: G external thread
• Flow Rate: 38 gpm
• Close-Off Pressure: 232 PSI
• Actuator Type: Electric
• Control Signal: Proportional, Floating
• Control Signal Range: 0 to 10 VDC, 4 to 20 mAdc
• Loss of Power Type: Spring Return
• Loss of Power Position: Normally closed
• Power Input Voltage: 24 VAC, 24 VDC
• Leads and Connections: No leads
• Force: 500 N
• Mechanical Movement: Linear
• Auxiliary Switch: Available as accessory
• Additional Features: Field selectable floating input signal travel time
• Protection Rating: IP54

Assembly Components:

• Valve Body: VP220E-50CQS
• Valve Range: SmartX PIBCV
• Valve Linkage: None, tool-less connection
• Valve End Connection: 9112108050
• Actuator: MP500C-SRD
• Actuator Range: SmartX Actuator

Product Alert: Spring return stem down. Not for use with steam The SpaceLogic PIBCV range is a comprehensive selection of automatic balancing and control valves that provide flow limitation, with full control authority over hydronic regulation. Automatic balancing within PIBCV valves provide stable flow regulation regardless of pressure fluctuations in the system and all valves have an adjustable flow limitation set point. The control valve portion of the PIBCV further regulates the water/ glycol flow from close-off up to the maximum flow limit setting. Typical applications are temperature control of chillers, airhandling units, heat exchanges and terminal units such as fan coils, induction units and radiant panels.
