VP220A-80H-176-U131 | SmartX, Pressure Independent Valve Assembly, 3 in, 2-way, 176 GPM, MP500C proportional non-spring return actuator | Schneider Electric

Brand: Schneider ElectricSKU: VP220A-80H-176-U131

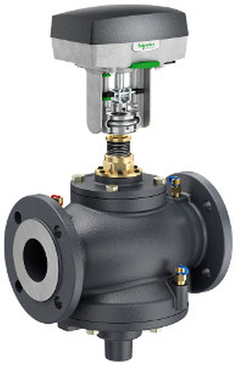

Schneider Electric | VP220A-80H-176-U131
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VP220A-80H-176-U131
Jump to: Overview & Specifications Reviews

Overview Details for VP220A-80H-176-U131

SmartX, Pressure Independent Valve Assembly, 3 in, 2-way, 176 GPM, MP500C proportional non-spring return actuator

Valve Assembly:
  • Body Size: 3 in
  • Configuration: 2-Way
  • Type: Pressure Independent
  • Connection: Flanged
  • Flow Rate: 176 gpm
  • Close-Off Pressure: 232 PSI
  • Actuator Type: Electric
  • Control Signal: Floating, Proportional
  • Control Signal Range: 0 to 10 VDC, 2 to 10 VDC, 4 to 20 mAdc
  • Loss of Power Type: Non-Spring Return
  • Loss of Power Position: Fail in place
  • Power Input Voltage: 24 VAC, 24 VDC
  • Leads and Connections: No leads
  • Force: 500 N
  • Mechanical Movement: Linear
  • Auxiliary Switch: Available as accessory
  • Additional Features: Field selectable floating input signal travel time
  • Protection Rating: IP54
Assembly Components:
  • Valve Body: VP220A-80CQH
  • Valve Range: SmartX PIBCV
  • Valve Linkage: None, tool-less connection
  • Actuator: MP500C
  • Actuator Range: SmartX Actuator

Product Alert: Not for use with steam

Specifications

Item Number VP220A-80H-176-U131
Brand Schneider Electric
Control Input Floating Point
Control Valves Type Pressure Independent
End Switch Yes
Housing NEMA 1
Spring Return Non-Spring Return
Valve Size 80 mm - 2 Way
Voltage
