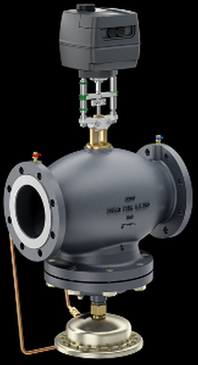

VP220A-150H-830-U261 | SmartX, Pressure Independent Valve Assembly, 6 in, 2-way, 830 GPM, MP2000-SRU proportional spring return actuator | Schneider Electric

SmartX, Pressure Independent Valve Assembly, 6 in, 2-way, 830 GPM, MP2000-SRU proportional spring return actuator

• Body Size: Valve Body (VP221A-150CQH):
  • Body Size: 6 in
  • Configuration: 2-Way
  • Type: Pressure Independent
  • Connection: Flanged
  • Material Trim: Brass
  • Flow Rate Range: 332 to 830 gpm
  • Actuator Type: Actuator: (MP2000-SRU):


    • Actuator Type: Electric
    • Control Signal: Proportional, Floating
    • Control Signal Range: 0 to 10 VDC, 0 to 20 mAdc
    • Loss of Power Type: Spring Return
    • Loss of Power Position: Normally open
    • Power Input Voltage: 24 VAC, 24 VDC
    • Leads and Connections: No leads
    • Force: 2000 N
    • Mechanical Movement: Linear
    • Auxiliary Switch: 1 SPDT
    • Additional Features: LED Status Indicator
    • Protection Rating: IP54
    Assembly Components:
    • Valve Body: VP221A-150CQH
    • Valve Range: SmartX PIBCV
    • Valve Linkage: None, tool-less connection
    • Actuator: MP2000-SRU
    • Actuator Range: SmartX Actuator

    Product Alert: Not for use with steam
