VP220A-125H-485-U261 | SmartX, Pressure Independent Valve Assembly, 5 in, 2-way, 485 GPM, MP2000-SRU proportional spring return actuator | Schneider Electric

Brand: Schneider ElectricSKU: VP220A-125H-485-U261

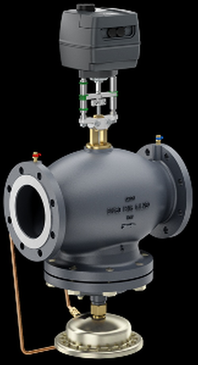

Schneider Electric | VP220A-125H-485-U261
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VP220A-125H-485-U261
Jump to: Overview & Specifications Reviews

Overview Details for VP220A-125H-485-U261

SmartX, Pressure Independent Valve Assembly, 5 in, 2-way, 485 GPM, MP2000-SRU proportional spring return actuator

Valve Assembly:
  • Body Size: Valve Body (VP221A-125CQH):
    • Body Size: 5 in
    • Configuration: 2-Way
    • Type: Pressure Independent
    • Connection: Flanged
    • Material Trim: Brass
    • Flow Rate Range: 194 to 485 gpm
    • Actuator Type: Actuator: (MP2000-SRU):

      • Actuator Type: Electric
      • Control Signal: Proportional, Floating
      • Control Signal Range: 0 to 10 VDC, 0 to 20 mAdc
      • Loss of Power Type: Spring Return
      • Loss of Power Position: Normally open
      • Power Input Voltage: 24 VAC, 24 VDC
      • Leads and Connections: No leads
      • Force: 2000 N
      • Mechanical Movement: Linear
      • Auxiliary Switch: 1 SPDT
      • Additional Features: LED Status Indicator
      • Protection Rating: IP54
      Assembly Components:
      • Valve Body: VP221A-125CQH
      • Valve Range: SmartX PIBCV
      • Valve Linkage: None, tool-less connection
      • Actuator: MP2000-SRU
      • Actuator Range: SmartX Actuator

      Product Alert: Not for use with steam

Specifications

Item Number VP220A-125H-485-U261
Brand Schneider Electric
Control Input Floating Point
Control Valves Type Pressure Independent
End Switch Yes
freeship upsground
Housing NEMA 1
Spring Return Spring Return
Valve Size 125 mm - 2 Way
Voltage
