VMP42.12(2) | GV .5IN NPT SS 1.17CV | Schneider Electric

Brand: Schneider ElectricSKU: VMP42.12(2)
Schneider Electric | VMP42.12(2)

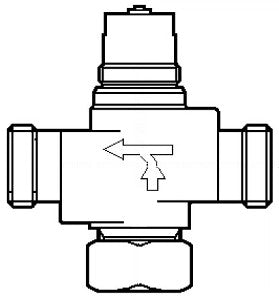

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VMP42.12(2)
Jump to: Overview & Specifications Reviews

Overview Details for VMP42.12(2)

GV .5IN NPT SS 1.17CV

Valve Assembly:
  • Body Size: 5/8 in
  • Configuration: 2-Way
  • Type: Globe
  • Connection: Flare
  • Stem Flow Action: Stem up A open
  • Material Trim: Brass
  • Flow Coefficient: 2.2 cv
  • Close-Off Pressure: 250 PSI
  • Actuator Type: Electric
  • Control Signal: Floating
  • Loss of Power Position: Non-Spring Return
  • Power Input Voltage: 24 VAC, 20 to 24 VDC
  • Force: 78 lbf
  • Mechanical Movement: Linear
  • Additional Features: LED Status Indicator
  • Protection Rating: NEMA 2
Assembly Components:
  • Valve Body: VB-7212-0-4-03
  • Actuator: MG350V-24F
  • Actuator Range: SmartX Actuator
  • Actuator Comment: Compatible w/ 2-Position Form A 24 VAC/VDC input.
  • Linkage: Integral linkage
The VMP Electronic 2-Way and 3-Way Valves control water and glycol solutions. Removal of the cap from the bottom bypass port (III) converts this valve assembly to a 3-way valve.

Specifications

Item Number VMP42.12(2)
Brand Schneider Electric
