VM2317P33A000 | VB: 3/4 in, 2W, Zone, SWT, BR, 7.5 cv, 35 PSI; Act (AP33A000): Elec, Prop, 0-10 VDC/4-20mAdc, NSR, 24 VAC, No Leads, N1 | Schneider Electric

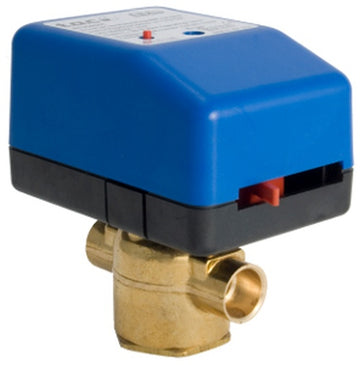

Schneider Electric | VM2317P33A000
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VM2317P33A000

Documents and manuals

Schneider Electric VM2317P33A000 Documents

Overview

Details for VM2317P33A000

VB: 3/4 in, 2W, Zone, SWT, BR, 7.5 cv, 35 PSI; Act (AP33A000): Elec, Prop, 0-10 VDC/4-20mAdc, NSR, 24 VAC, No Leads, N1

Valve Assembly:
  • Body Size: 3/4 in
  • Configuration: 2-Way
  • Type: Zone
  • Connection: Sweat
  • Material Trim: Brass
  • Flow Coefficient: 7.5 cv
  • Control Media: Glycol 25 to 60% and Water
  • Product Line: Schneider Electric
  • Product Range: Erie PopTop
  • Product Series: VM2
Product Alert: Not for use with steam
  • Close-Off Pressure: 35 PSI
  • Actuator Type: Electric
  • Control Signal: Proportional
  • Control Signal Range: 0 to 10 VDC or 4 to 20 mAdc
  • Loss of Power Type: Non-Spring Return
  • Loss of Power Position: Fail in place
  • Power Input Voltage: 24 VAC
  • Leads and Connections: No Leads
  • Mechanical Movement: Rotary
  • Protection Rating: NEMA 1
  • Assembly Components:
    • Valve Body: VM2317
    • Valve Linkage: None, tool-less connection
    • Actuator: AP33A000
    • Actuator Range: Erie PopTop

    Product Alert: Not for use with steam

    Specifications

    Item Number VM2317P33A000
    Brand Schneider Electric
    Control Input Modulating
    Control Valves Type Zone Valve
    CV / GPM 7.5 Cv
    End Switch No
    Housing NEMA 1
    Spring Return Non-Spring Return
    Valve Size 0.75" - 2 Way
    Voltage 24V
