VKF-6220-221-L-14 | VB: 4 in, 2W, BFV, FLG, Full, FE, 496 cv, 175 PSI; Act (MK-7121): Pneu, 2Pos/Prop, 8-13 PSIG, SR, NC, Air NPT | Schneider Electric

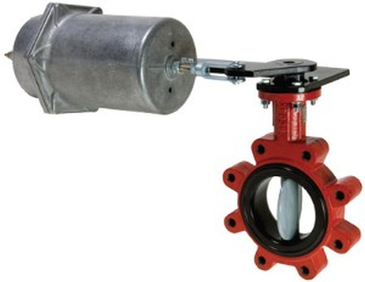

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VKF-6220-221-L-14
Documents and manuals
Schneider Electric VKF-6220-221-L-14 Documents
Overview
Details for VKF-6220-221-L-14
VB: 4 in, 2W, BFV, FLG, Full, FE, 496 cv, 175 PSI; Act (MK-7121): Pneu, 2Pos/Prop, 8-13 PSIG, SR, NC, Air NPT
Valve Assembly:- Body Size: 4 in
- Configuration: 2-Way
- Type: Butterfly
- Connection: Flanged
- Body Style: Lug
- Disc Shape: Full
- Material Disc: Ductile Iron - Nylon 11 Coated
- Flow Coefficient: 496 cv
- Close-Off Pressure: 175 PSI
- Actuator Type: Pneumatic
- Control Signal: 2-Position (On/Off), Proportional
- Control Spring Range: 8 to 13 PSIG
- Loss of Power Type: Spring Return
- Loss of Power Position: Normally closed Leads and Connections: 1/8 in Air NPT
- Mechanical Movement: Rotary
- Protection Rating: NEMA 4
- Valve Body: VKF-6200-0-L-14
- Valve Linkage: Included with assembly
- Actuator: MK-7121
Product Alert: Not for use with steam.
Specifications
Item Number | VKF-6220-221-L-14 |
Brand | Schneider Electric |
