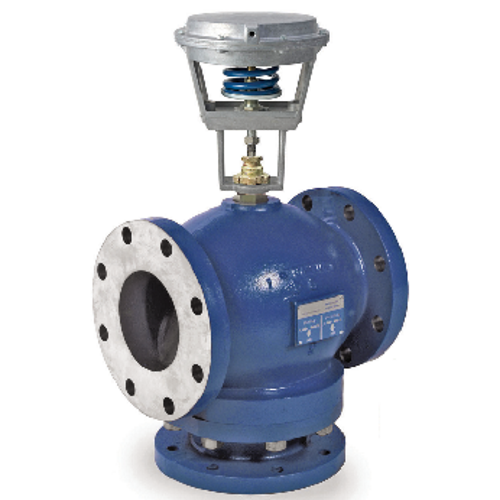

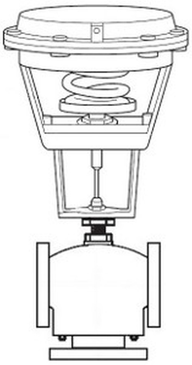

VK-9313-603-5-12 | VB: 2-1/2 in, 3W Mix, Globe, FLG, UC, BR, 74 cv, 60 PSI; Act (MK-6821): Pneu, Prop, 8-13 PSIG, SR, NC, Air NPT, Linear, N1 | Schneider Electric

VB: 2-1/2 in, 3W Mix, Globe, FLG, UC, BR, 74 cv, 60 PSI; Act (MK-6821): Pneu, Prop, 8-13 PSIG, SR, NC, Air NPT, Linear, N1

• Body Size: 2-1/2 in
• Configuration: 3-Way Mixing
• Type: Globe
• Connection: Flanged
• Stem Flow Action: Stem up, mixing closed A to AB
• Material Trim: Brass
• Flow Coefficient: 74 cv
• Close-Off Pressure: 60 PSI
• Actuator Type: Pneumatic
• Control Signal: Proportional
• Control Spring Range: 8 to 13 PSIG
• Loss of Power Type: Spring Return
• Loss of Power Position: Up/Retract A closed
• Leads and Connections: 1/8 in Air NPT
• Mechanical Movement: Linear
• Protection Rating: NEMA 1

• Valve Body: VB-9313-0-5-12
• Valve Linkage: AV-495
• Actuator: MK-6821
